Запчасти Case IH 400 (A-053[A]) - DRAWBAR EXTENSION, EXTENSION NO. 20472 AND BELOW

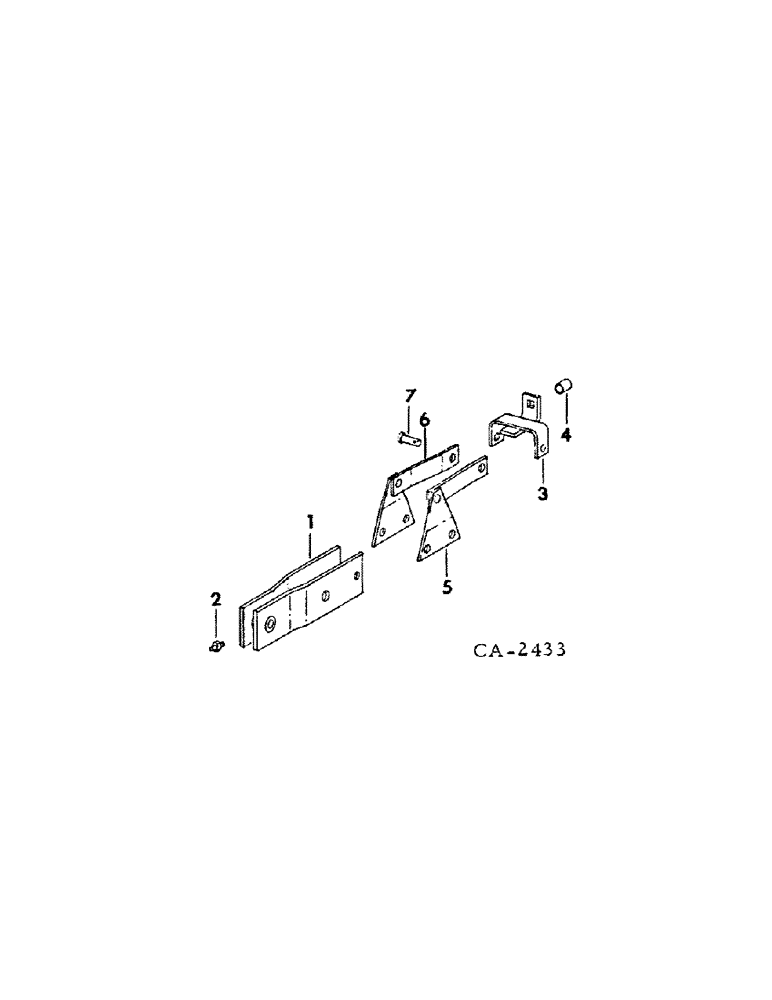

Схема запчастей Case IH 400 - (A-053[A]) - DRAWBAR EXTENSION, EXTENSION NO. 20472 AND BELOW
2
1
3
6
7
5
4

Артикул

Название

Примечание

Количество

1

547164R1

EXTENSION ASSY, unit

2шт.

18613R1

BOLT,Hex, 3/4"-10 x 3 1/4", G2

3/4 x 3-1/4 znd hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type STR lub

2шт.

3

547167R1

SUPPORT ASSY, jockey

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 20 znd sq-nk crg

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

4

159716C1

SPACER,3/4" Tube x 5/8"

BUSHING, jockey bar, replaces 586329R1

2шт.

5

545570R1

BRACKET ASSY, lift rod LH

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

545571R1

BRACKET ASSY, lift rod RH

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

21931R1

PIN

1/2 x 1-7/8 znd std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

Выбрано товаров: 28
