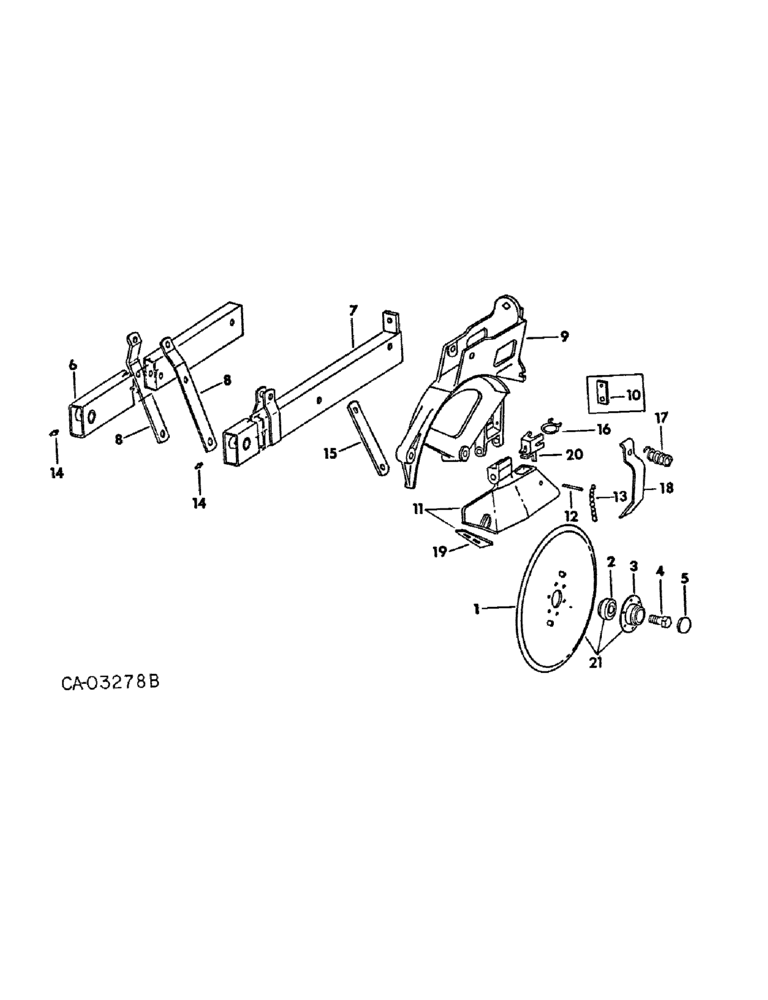

Запчасти Case IH 400 (A-052) - DOUBLE DISK OPENER AND SCRAPER, STAGGERED, QUANTITIES SHOWN ARE PER ROW

1

492756R1

DISC

DISK, 13-1/2 in. opener

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd solid

12шт.

2

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, replaces 492757R91

2шт.

2

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

3

492710R1

RETAINER

FLANGE, bearing

2шт.

4

28067R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

disk bearing, LH thread

1шт.

4

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

Disk bearing, RH thread Hex, 5/8"-11 x 1 1/2", G8, Full Thd

1шт.

608701R1

WASHER

.656 x 1.250 x .054, (as required)

2шт.

5

492709R1

CAP

bearing housing

2шт.

6

57303C1

TUBE ASSY, outer drawbar

1шт.

7

57301C1

TUBE ASSY, inner drawbar

1шт.

8

57291C1

ARM, attaching outer

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

60106C1

BOOT

double disk opener, replaces boot, 57140C1

1шт.

S2671

HEADED PIN,7/16" x 3 3/4"

PIN, 7/16 x 3-3/4 std-hd

1шт.

21029R1

WASHER

.469 x 1 x .105 znd, used only w/boot, 57140C1

2шт.

607891R1

WASHER

.469 x 1 x .067 znd, used only w/boot, 57140C1

2шт.

10

57293C1

CLIP, pivot bearing, used only w/boot, 57140C1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

11

61114C92

SHOE

ASSY, scraper

1шт.

12

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

13

548451R1

CHAIN (AG)

CHAIN, seed opener

4шт.

14

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 STR drive lub

1шт.

15

57292C1

ARM, attaching inner

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, hose

1шт.

17

6633

SPRING

2шт.

18

58046C1

SCRAPER

disk

2шт.

18776R1

BOLT,Hex, 5/16"-18 x 5 1/2", G2

5/16 x 5-1/2 znd hex-hd mach

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

NLS

NO LONGER SERVICED

5/16-18 znd hex. jam

2шт.

19

60182C1

HALF BLADE

SCRAPER, offset disk

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

134238R1

WASHER

.344 x 1 x .054 znd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120373

NUT, 5/16-18 znd square

1шт.

20

59781C1

RETAINER

tube

1шт.

21

141464C91

DISC

DISK ASSY, consists of ref. nos. 1, 2 and 3

1шт.
