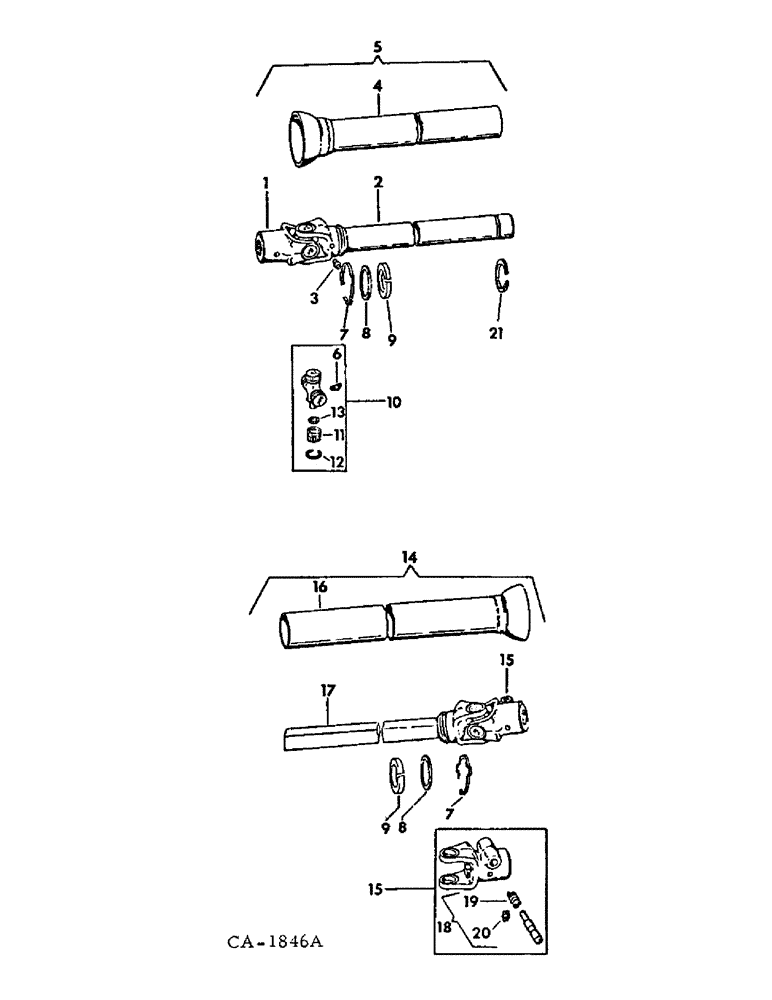

Запчасти Case IH 400 (A-050) - UNIVERSAL JOINT DRIVE

1

462477R1

YOKE

w/KEYWAY, serial no. 20472 and below

1шт.

1

60101C1

YOKE

w/KEYWAY, serial no. 20473 and above

1шт.

2

547185R2

TUBE

YOKE, tube and sleeve

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28NF-2 STR lub

1шт.

4

547184R2

SHIELD

AND BELL ASSY, inner

1шт.

5

547148R93

JOINT

ASSY, single universal shielded rear half, implement end, serial no. 20472 and below

1шт.

5

60100C91

JOINT

ASSY, single universal shielded rear half, implement end, rockwell standard, serial no. 20473 and above

1шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 3/4 angle lub

2шт.

7

463016R1

RING

shield retaining

2шт.

8

463015R1

THRUST WASHER

shield thrust

2шт.

9

463014R1

RING

BEARING, shield nylon

2шт.

10

202347C91

BEARING

KIT, center cross

2шт.

11

BEARING ASSY, needle, (not serviced separately) order kit 202347C91

8шт.

12

202373C1

RING

snap

8шт.

13

SEAL, cork oil, (not serviced separately) order kit 202347C91

8шт.

14

546542R93

DRIVE SHAFT

JOINT ASSY, single universal shielded front half, tractor end, rockwell standard, 540 RPM PTO

1шт.

14

59067C91

JOINT ASSY, single universal shielded front half, tractor end, rockwell standard, 1000 RPM PTO

1шт.

15

462492R91

YOKE

ASSY, quick detachable, 540 RPM PTO

1шт.

15

59034C91

YOKE

ASSY, quick detachable, 1000 RPM PTO

1шт.

16

464136R1

SHIELD

AND BELL ASSY, outer, replaces 547186R2, 540 RPM PTO

1шт.

16

59068C1

SHIELD

AND BELL ASSY, outer, 1000 RPM PTO

1шт.

17

547187R2

YOKE

AND SHAFT, 540 RPM PTO

1шт.

17

59069C1

YOKE AND SHAFT, 1000 RPM PTO

1шт.

18

455346R21

PIN

ASSY, lock, 540 RPM PTO

1шт.

18

59036C91

PIN

ASSY, lock, 1000 RPM PTO

1шт.

19

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

20

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

21

539646R1

BEARING

nylon support

1шт.
