Запчасти Case IH 400 (A-031) - HYDRAULIC MARKER ATTACHMENT, FOR 6 ROW WIDE AND 8 ROW NARROW

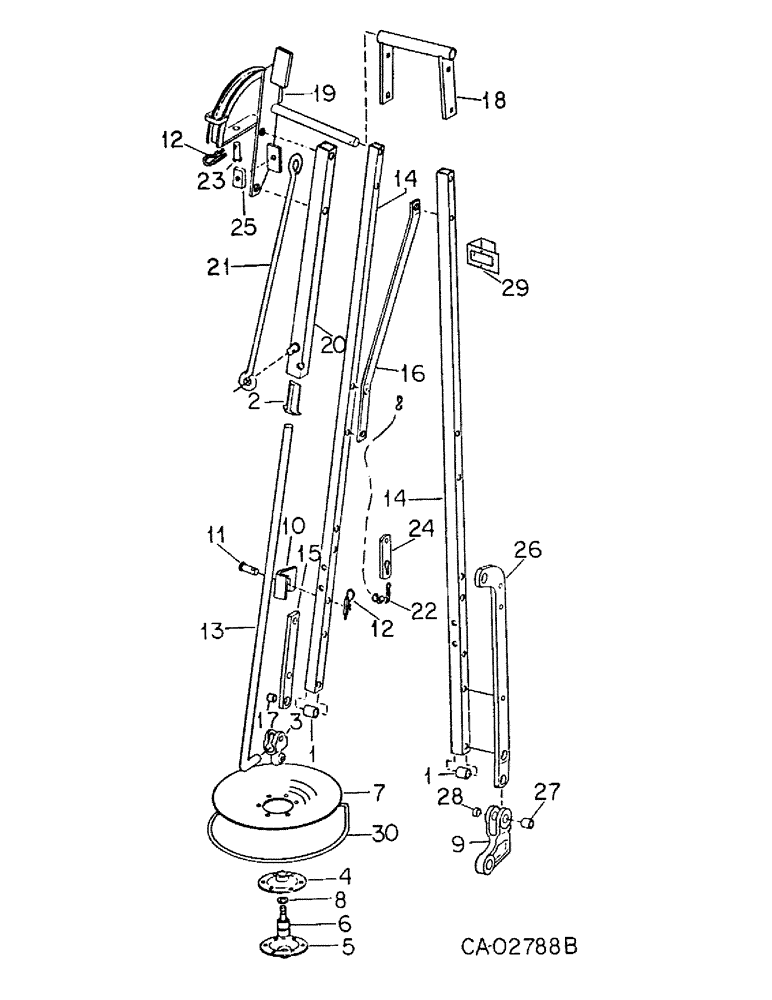

Схема запчастей Case IH 400 - (A-031) - HYDRAULIC MARKER ATTACHMENT, FOR 6 ROW WIDE AND 8 ROW NARROW
24
28
25
11
12
4
14
30
2
21
10
8
18
16
29
22
15
19
1
20
6
13
9
14
5
27
7
26
23
12

Артикул

Название

Примечание

Количество

1

495137R1

SPACER

BUSHING, tube

4шт.

2

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2 x 1-1/4 C-Z sq-hd cup-pt set

2шт.

3

478032R1

CLAMP

axle

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

5

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

6

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

7

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

8

480679R1

WASHER

dirt seal felt

2шт.

9

546511R1

LEVER

MARKER, pivot

2шт.

10

548749R1

LATCH

marker LH

1шт.

10

548750R1

LATCH

marker RH

1шт.

11

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2-1/4 C-Z std-hd

2шт.

12

520175R1

CLIP

PIN, quick attachable cot.

4шт.

13

548747R1

ROD

marker disk clamp

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

231-1448

NUT,1/2"-13, GB

1/2-13 C-Z nylon insert

2шт.

14

493944R2

TUBE

marker frame

4шт.

15

548077R1

ARM

marker pivot

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

16

493945R1

BRACE

frame

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17

493982R2

BUSHING

pivot

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

18

489758R2

PIPE

ASSY

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

6шт.

20181R1

BOLT, 1/2 x 3-1/4 crg type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

19

489774R3

PULLEY

ASSY, LH

1шт.

19

489775R3

PULLEY

ASSY, RH

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

6шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

20

493949R1

TUBE ASSY

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

493951R1

ROD

marker brace

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

22

493952R1

CHAIN (AG)

CHAIN, actuator

2шт.

23

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

24

548076R1

LINK

actuator chain

2шт.

25

493959R1

BLOCK

STOP, marker frame

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

2шт.

20600R1

WASHER

9/32 x 1 x 18 ga C-Z

2шт.

480891R1

NUT

1/4-20 C-Z hex. flange lock

2шт.

23317R1

PIN, 1/2 x 1-1/16 std-hd

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

26

548078R2

ARM

marker lift LH

1шт.

26

548079R2

ARM

marker lift RH

1шт.

19077R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 no. 3 repair plow

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

27

548748R1

BUSHING

marker pivot, 3/4 ID x 7/8 in. long

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

28

546504R1

BUSHING

marker pivot, 3/4 ID x 13/32 in. long

2шт.

29

113118C91

BRACKET w/PRODUCT GRAPHIC, 113116C1, marker warning

2шт.

413-432

SCREW, 1/4-20 x 2 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

30

113223C1

GUARD

marker disk

2шт.

Выбрано товаров: 83
