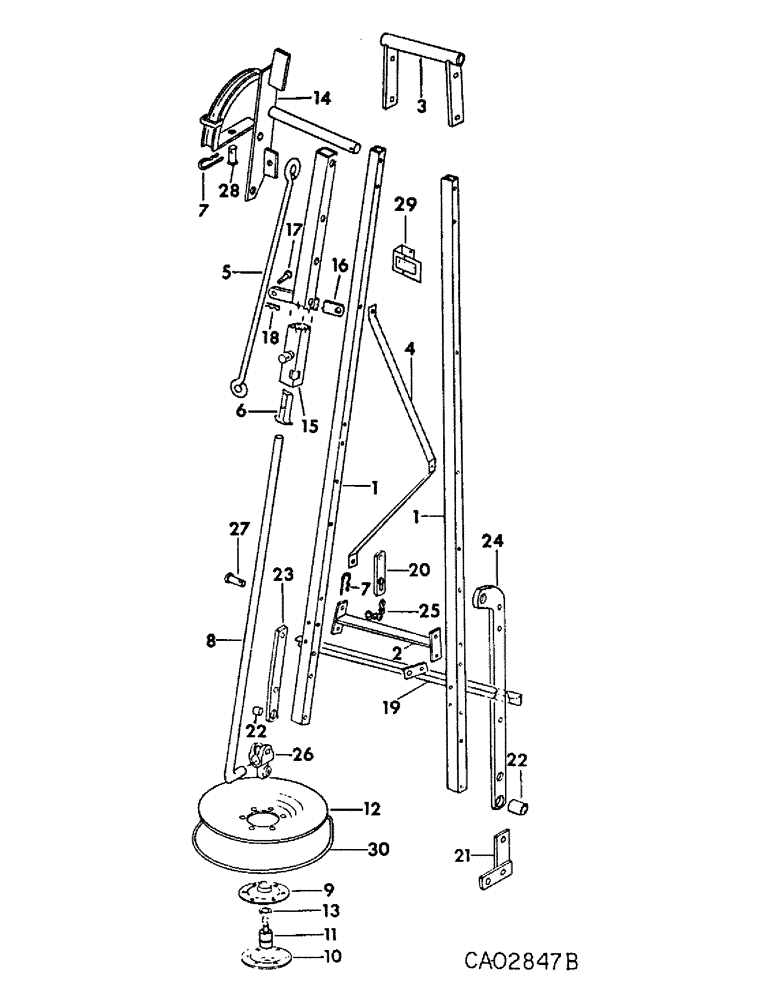

Запчасти Case IH 400 (A-030) - HYDRAULIC MARKER ATTACHMENT, FOR 4 ROW AND 6 ROW NARROW
№
Артикул
Название
Примечание
Количество
1
489754R3
TUBE
marker, 8 row marker attachment on 4 row
4шт.
1
489771R3
TUBE, marker, 12 row marker attachment on 6 row narrow
4шт.
2
493946R1
BRACKET
ASSY, tube
2шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3/8 x 2-1/2 type 5
4шт.
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
3/8 x 2-3/4 type 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
3
489758R2
PIPE
ASSY
2шт.
18709R1
BOLT,Short NK, 1/2"-13 x 2 3/4", G2
1/2 x 2-3/4 crg type 1
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
4
489761R1
SUPPORT
BRACE
2шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
SCREW, 3/8-16 x 2-1/2 znd hex-hd cap
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
5
489763R1
ROD, marker brace, 12 row marker attachment on 6 row narrow
2шт.
5
489768R1
ROD
marker brace, 8 row marker attachment on 4 row
2шт.
21782R1
WASHER
21/32 x 1-1/2 x 16 ga C-Z
2шт.
187988
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
2шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
4шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
6
489764R1
BLOCK
2шт.
20080R1
SET SCREW
1/2-13 x 1-1/4 znd sq-hd cup pt set
2шт.
7
520175R1
CLIP
PIN, quick attachable cot.
4шт.
8
478033R1
ROD
marker disk clamp
4шт.
9
478035R1
BEARING HOUSING,109 mm OD x 19.3 mm
disk furrow brg inner
2шт.
10
478036R1
BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm
disk furrow brg outer
2шт.
11
478034R91
BEARING ASSY,30mm OD x 82.53mm L
BEARING, ball
2шт.
12
469372R1
DISC,13"
DISK, 13 in.
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 znd hex-hd cap
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
120376
NUT,5/16"-18, G5
12шт.
13
480679R1
WASHER
dirt seal felt
2шт.
14
489774R3
PULLEY
ASSY, LH
1шт.
14
489775R3
PULLEY
ASSY, RH
1шт.
15
489781R2
TUBE ASSY, right, 12 row marker attachment on 6 row narrow
1шт.
15
489783R1
TUBE ASSY, left, 12 row marker attachment on 6 row narrow
1шт.
15
489784R2
TUBE ASSY, right, 8 row marker attachment on 4 row
1шт.
15
489786R2
TUBE
ASSY, left, 8 row marker attachment on 4 row
1шт.
648002
KNIFE
1/8" x 3/4"
2шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
SCREW, 1/2-13 x 2-1/2 znd hex-hd cap
10шт.
120384
WASHER,1/2"
LOCK, 1/2"
12шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
12шт.
16
489787R1
LINK
2шт.
17
23225R1
HEADED PIN,3/8" x 2"
PIN, HEADED, 3/8" x 2"
4шт.
18
586591R1
COTTER PIN
PIN, quick attachable cot.
4шт.
19
549315R1
SUPPORT ASSY, RH
1шт.
19
549314R1
SUPPORT ASSY, LH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
20
548076R1
LINK
actuator chain
2шт.
21341R1
HEADED PIN,1/2" x 1"
PIN, 1/2 x 1 znd std-hd
2шт.
21
549331R1
ANCHOR ASSY, cylinder RH
1шт.
21
549330R1
ANCHOR ASSY, cylinder LH
1шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8-11 x 2-1/4 znd hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
22
493982R2
BUSHING
marker pivot
4шт.
23
548077R1
ARM
marker pivot
2шт.
271723
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 znd hex-hd cap
2шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8-11 x 2-1/4 znd hex-hd cap
2шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga C-Z
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
4шт.
24
548078R2
ARM
marker lift LH
1шт.
24
548079R2
ARM
marker lift RH
1шт.
19077R1
CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2
BOLT, 1/2 x 3 no. 3 repair head plow
2шт.
25
489767R92
CHAIN (AG)
CHAIN, marker
2шт.
18656R1
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
1/4 x 1-1/4 znd hex-hd mach
2шт.
20600R1
WASHER
9/32 x 3/4 x 11 ga C-Z
2шт.
480891R1
NUT
1/4-20 znp flange lock
2шт.
26
478032R1
CLAMP
axle
2шт.
466971R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 x 2 znd sq-nk crg
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
128228
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set
2шт.
27
23173R1
CLEVIS PIN
PIN, 1/2 x 2-3/4 znd std-hd
2шт.
28
22090R1
HEADED PIN
PIN, 3/4 x 7/8 C-Z std-hd
2шт.
29
113118C91
BRACKET w/PRODUCT GRAPHIC, 113116C1, marker warning
2шт.
180044
SPRING
SCREW, 1/4-20 x 2 znd hex-hd cap
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
30
113223C1
GUARD
marker disk
2шт.
Выбрано товаров: 85
