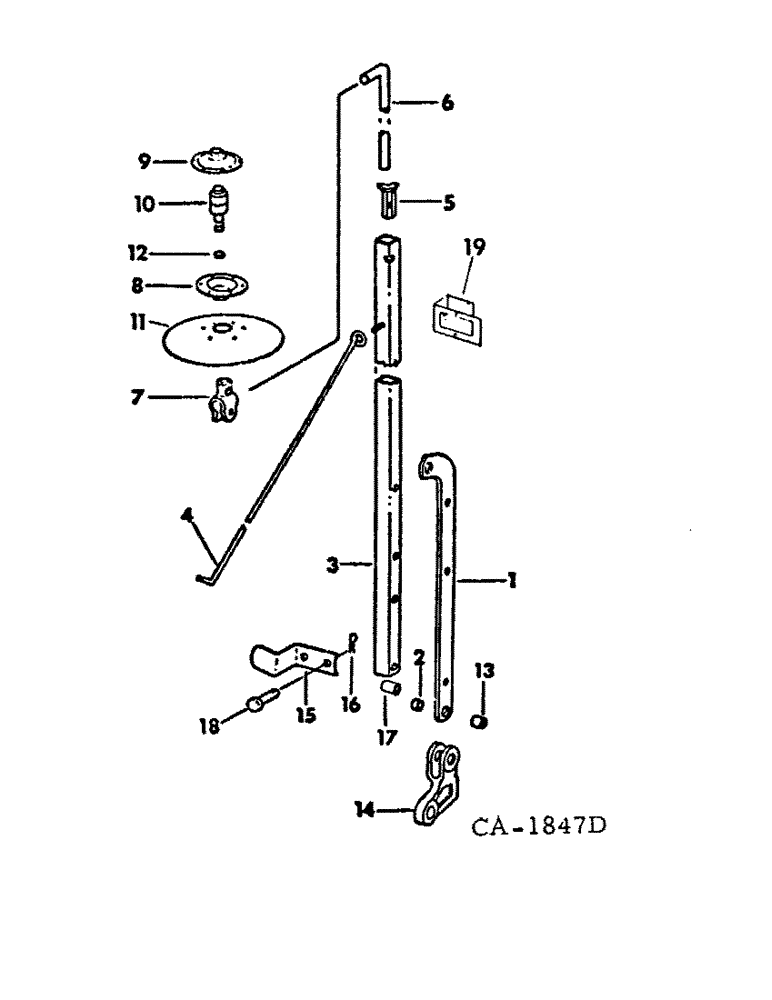

Запчасти Case IH 400 (A-029) - MARKER ATTACHMENT, 4 ROW AND 6 ROW NARROW

1

546503R1

ARM, marker lift

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8 x 2-3/4 znd hex-hd cap

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

2

546504R1

BUSHING

marker pivot

2шт.

3

546505R1

TUBE

ASSY, marker, 4 row wide, 4 row adjustable and 6 row narrow

2шт.

3

57647C1

TUBE

ASSY, marker, 4 row adjustable narrow

2шт.

3

546508R1

TUBE ASSY, marker, 4 row convertible

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

546507R1

ROD

truss

2шт.

4

57649C1

ROD, truss, 4 row adjustable narrow

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

5

489764R1

BLOCK

1шт.

20080R1

SET SCREW

1/2 x 1-1/4 C-Z sq-hd cup-pt set

2шт.

6

478732R1

ROD

marker disk

2шт.

6

484754R1

ROD, marker disk, 4 row adjustable narrow

2шт.

7

478032R1

CLAMP

axle

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 C-Z sq-hd cup-pt set

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

9

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

10

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

11

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

12

480679R1

WASHER

dirt seal felt

2шт.

13

548748R1

BUSHING

will work for 546510R1

2шт.

14

546511R1

LEVER

MARKER, pivot

2шт.

15

546512R1

LATCH

marker LH

1шт.

15

546513R1

LATCH

marker RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

231-1448

NUT,1/2"-13, GB

1/2-13 C-Z nylon insert

2шт.

16

520175R1

CLIP

PIN, quick attachable cot.

2шт.

17

495137R1

SPACER

BUSHING

2шт.

18

22073R1

PIN, 1/2 x 7/8 C-Z std-hd 1/2" x 7/8"

2шт.

19

113118C91

BRACKET w/PRODUCT GRAPHIC, 113116C1, marker warning

2шт.

413-432

SCREW, 1/4-20 x 2 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.
