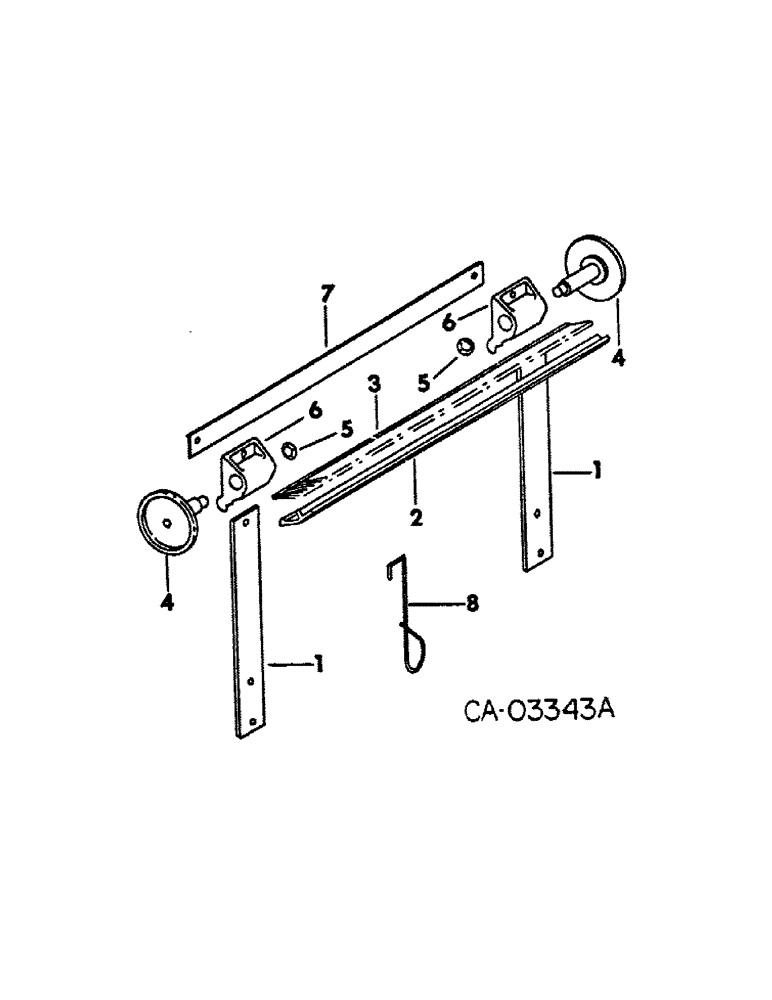

Запчасти Case IH 400 (A-028) - CUT-OFF BRUSH ASSY

58968C93

CIRCULAR BRUSH

BRUSH ASSY, cut-off, 4 and 6 row

1шт.

58969C93

BRUSH ASSY.

BRUSH ASSY, cut-off, 8 row

1шт.

1

NSS

NOT SOLD SEPARAT

SPRING, cut-off brush

2шт.

Not serviced separately, order cut-off brush assy.

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

8-32 x 5/8 C-Z slt-pan-hd mach

6шт.

120622

NUT,#8-32

4шт.

545558R1

LOCK NUT

lock

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

2

NSS

NOT SOLD SEPARAT

STRIP, clamping

1шт.

Not serviced separately, order cut-off brush assy.

1шт.

3

61136C2

BRUSH

cut-off, 4 and 6 row

1шт.

3

61137C2

BRUSH

cut-off, 8 row

1шт.

4

NSS

NOT SOLD SEPARAT

ROLLER, gauging

2шт.

Not serviced separately, order cut-off brush assy.

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

5

437157R1

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

BRACKET, gauging roller

2шт.

Not serviced separately, order cut-off brush assy.

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP, tie

1шт.

Not serviced separately, order cut-off brush assy.

1шт.

435697

SCREW, 8-32 x 3/4 zn slt-pan-hd mach

2шт.

545558R1

LOCK NUT

lock

2шт.

8

100170C1

SPRING

lock out

1шт.
