Запчасти Case IH 400 (A-028[A]) - LIFT CYLINDER MOUNTING

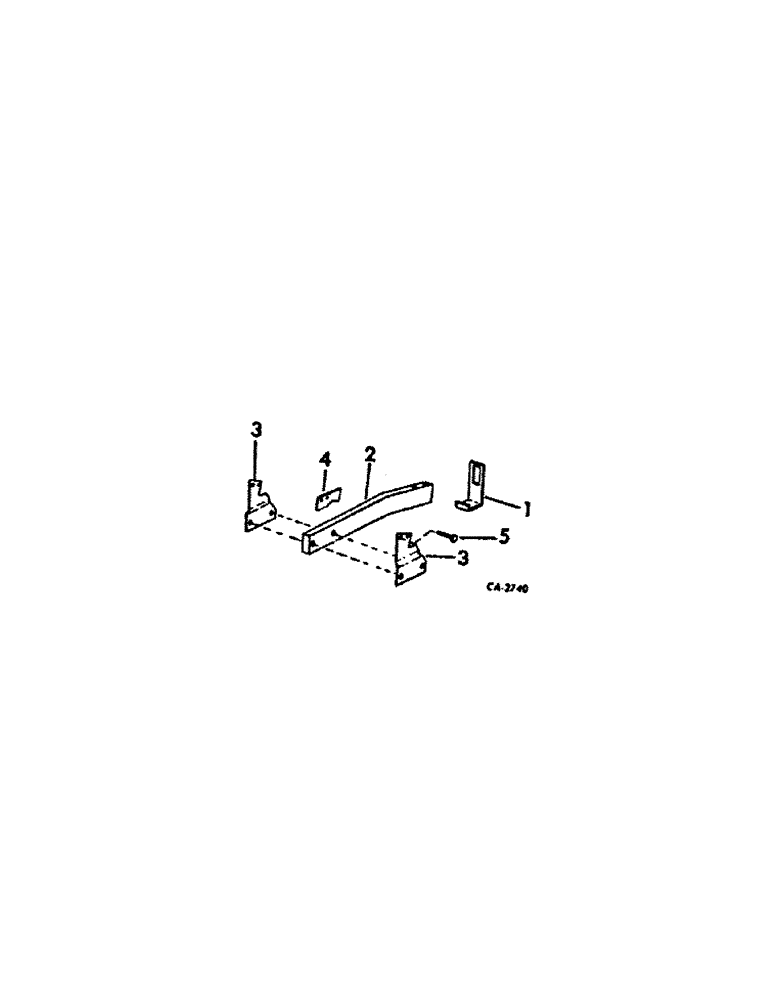

Схема запчастей Case IH 400 - (A-028[A]) - LIFT CYLINDER MOUNTING
5
3
3
4
1
2

Артикул

Название

Примечание

Количество

1

484354R1

ANCHOR, cylinder bracket retainer, 1 used for 4 and 6 row, 2 used for 8 row, serial no. 9048 and below

1шт.

2

546455R1

BRACKET, cylinder, 4 and 6 row

1шт.

2

548700R2

BRACKET, cylinder, 8 row, will work for 548699R1

2шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

3

472313R1

SUPPORT, cylinder LH, 1 used for 4 and 6 row, 2 used for 8 row

1шт.

3

472314R1

SUPPORT, cylinder RH, 1 used for 4 and 6 row, 2 used for 8 row

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach, 1 per support

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per support 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 1 per support

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap, 2 per support

1шт.

120384

WASHER,1/2"

LOCK, , 2 per support 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per support 1/2"-13, G5

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z, 2 per support

1шт.

4

472316R3

SUPPORT

RETAINER, cylinder, 1 used for 4 and 6 row, 2 used for 8 row

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap, 2 per retainer

1шт.

120384

WASHER,1/2"

LOCK, , 2 per retainer 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per retainer 1/2"-13, G5

1шт.

5

23885R1

PIN, 1/2 x 1.438 znd std-hd, 1 per retainer

1шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

1 per retainer 3/16" x 1 1/8"

1шт.

Выбрано товаров: 21
