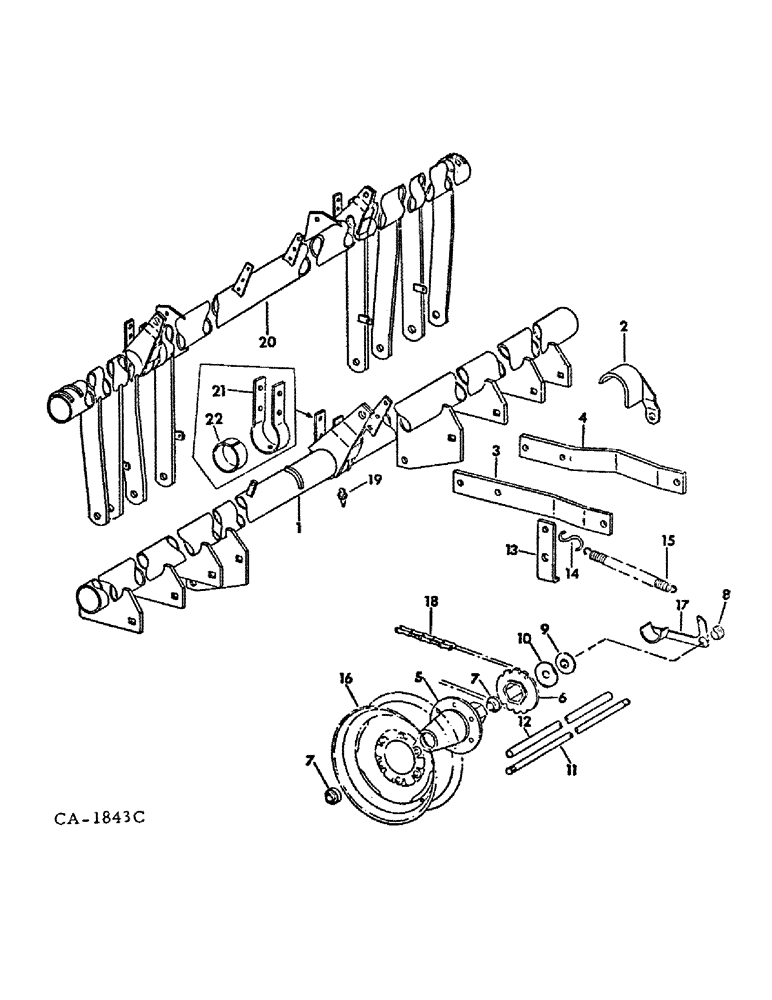

Запчасти Case IH 400 (A-026) - WHEEL FRAME AND WHEELS
№
Артикул
Название
Примечание
Количество
1
546460R3
FRAME ASSY, wheel, 4 row convertible and 6 row narrow
1шт.
1
57646C2
FRAME ASSY, wheel, 4 row adjustable
1шт.
1
548705R2
FRAME ASSY, wheel, 6 row wide
1шт.
113218C1
BAR
cylinder arm repair
1шт.
2
546477R1
ARM
ASSY, chain slide RH
1шт.
2
546478R1
ARM
ASSY, chain slide LH
1шт.
3
546597R1
ARM, one offset, inside, 6 row narrow
2шт.
3
546596R1
ARM, two offsets, inside, 4 row adjustable & convertible
2шт.
3
548708R1
ARM, straight, inside, 6 row wide
2шт.
3
546595R1
ARM, one offset, inside, 6 row narrow equipped w/four wheel att
2шт.
18720R1
SCREW,Short NK, 5/8"-11 x 2", G2
BOLT, 5/8 x 2 znd sq-nk crg
4шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8-11 x 2 znd hex-hd cap, 6 row wide only
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 znd hex.
4шт.
4
546595R1
ARM, one offset, outside, 4 row adjustable & 6 row narrow
2шт.
4
546544R1
ARM, one offset, outside, 4 row convertible
2шт.
4
548709R1
ARM, two offset, outside, 6 row wide
2шт.
4
546596R1
ARM, two offset, outside, 6 row narrow equipped with four wheel attachment
2шт.
18720R1
SCREW,Short NK, 5/8"-11 x 2", G2
BOLT, 5/8 x 2 znd sq-nk crg
4шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8-11 x 2 znd hex-hd cap, 6 row wide only
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
5
484029R1
HUB
wheel
1шт.
Machines w/serial no. UO54209 and below.
1шт.
5
133926C1
HUB
wheel, 2 for 4 and 6 row, 4 for 6 row narrow equipped with four wheel att and all 8 row
1шт.
Machines w/serial no. UO54210 and above.
1шт.
6
546482R1
SPROCKET ASSY.
SPROCKET, wheel drive, 15T
1шт.
Machines w/serial no. UO54209 and below.
1шт.
6
133927C1
SPROCKET ASSY.
SPROCKET, wheel drive, 15T, 1 for 4 and 6 row, 2 for 6 row narrow equipped with four wheel att and all 8 row
1шт.
Machines w/serial no. UO54210 and above.
1шт.
7
465003R91
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
ball, 2 per wheel hub
1шт.
Machines w/serial no. UO54209 and below.
1шт.
7
136945C91
BALL BEARING,0.75" ID x 2.4409" OD x 0.9449"
ball, 2 per wheel hub
1шт.
Machines w/serial no. UO54210 and above.
1шт.
8
546463R1
CYLINDER END CAP
BUSHING, chain tightener, 2 per chain tightener arm
1шт.
9
547956R1
WASHER
retaining, 2 per chain tightener arm
1шт.
Machines w/serial no. UO54209 and below.
1шт.
9
133930C2
WASHER
retaining, 2 per chain tightener arm
1шт.
Machines w/serial no. UO54210 and above.
1шт.
10
547954R1
WASHER
wear
1шт.
Machines w/serial no. UO54209 and below.
1шт.
10
133929C1
WASHER
wear, 1 per chain tightener arm
1шт.
Machines w/serial no. UO54210 and above.
1шт.
11
484434R1
ROD
axle, 1 per wheel
1шт.
21844R1
WASHER
25/32 x 1-1/8 x 16 ga C-Z, 1 per axle rod
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 2 per axle rod
1шт.
12
484031R2
SPACER
wheel bearing, 1 per wheel
1шт.
Machines w/serial no. UO54209 and below.
1шт.
12
133928C1
SPACER
TUBE, wheel bearing, 1 per wheel
1шт.
Machines w/serial no. UO54210 and above.
1шт.
13
473562R1
ANCHOR, spring, 4 and 6 row, 1 per chain tightener arm
1шт.
180178
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
SCREW, 1/2-13 x 1-5/8 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
14
474374R1
HOOK
S-HOOK, 1 per chain tightener arm, 4 and 6 row
1шт.
15
2072A
VALVE SPRING
SPRING, chain tightener, 1 per chain tightener arm
1шт.
187988
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), , 1 per spring 3/16" x 1 1/4"
1шт.
16
463034R1
RIM
WHEEL, planter drive, 14 x 5 KB rim for 8.00-14 tire, 4 used for 8 row and 6 row narow with four wheel attachment
2шт.
16
481344R91
WHEEL
planter drive, 14 x 8 KB rim for 9.50L-14 tire, high floatation, 4 used for 8 row and 6 row narrow with four wheel attachment
2шт.
16
622192R91
WHEEL
planter drive, 15 x 5 KB rim for 7.60L-15 tire, 4 used for 8 row and 6 row narrow with four wheel attachment
2шт.
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
wheel, 6 per wheel
1шт.
387841R91
VALVE
TR-413 tubeless type, one per wheel
1шт.
17
546484R1
ARM
ASSY, drive chain tightener LH
1шт.
17
546485R1
ARM
ASSY, drive chain tightener RH
1шт.
18
CHAIN, roller drive, 4 row and 6 row narrow, use 61 links 1-1/4 AGR ext pitch transmission roller chain from a 10 ft roll marked, 569089R91 and one connecting link, 587372R91
1шт.
18
CHAIN, roller drive, 1 used for 6 row wide, 2 used for 8 row, use 65 links 1-1/4 AGR ext pitch transmission roller chain from a 10 ft roll marked, 569089R91 and one connecting link, 587372R91
1шт.
19
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 NF STR lub, in cylinder bracket retainer
1шт.
20
548710R2
FRAME ASSY, wheel, 8 row narrow
1шт.
20
57651C3
FRAME ASSY, wheel, 8 row wide
1шт.
21
546466R2
BRACKET
RETAINER, cylinder bracket, service only
1шт.
22
546467R1
RING, LOCKING
SPACER, wear, service only
1шт.
Выбрано товаров: 72
