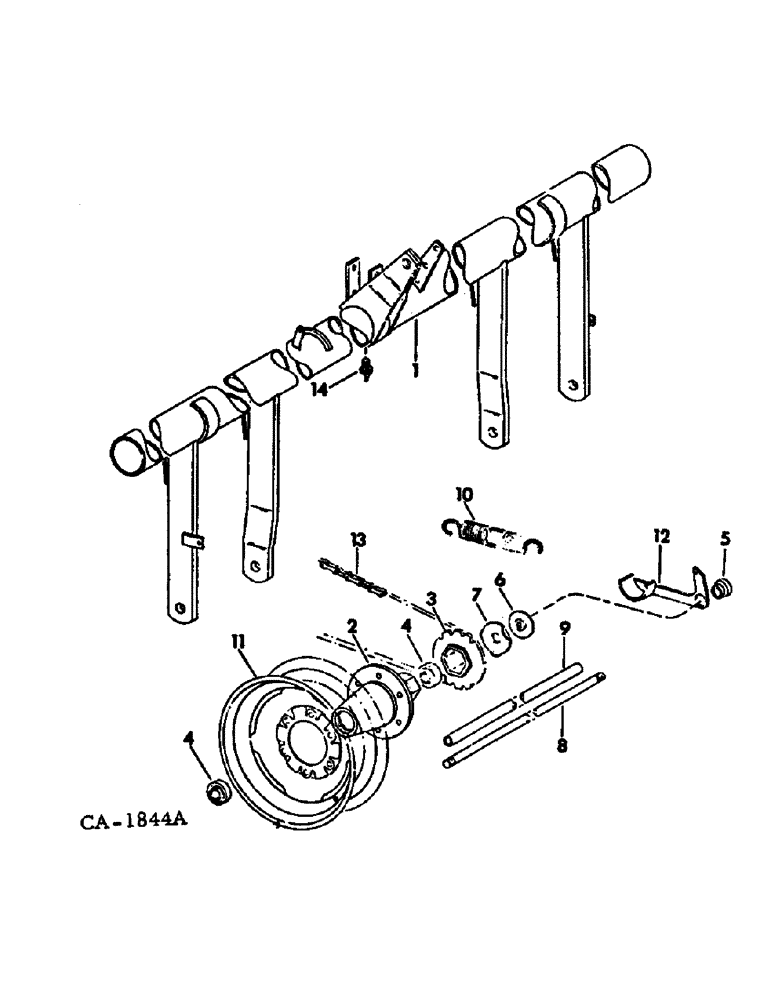

Запчасти Case IH 400 (A-025) - WHEEL FRAME AND WHEELS, FOR FOUR ROW WIDE

1

546461R3

FRAME ASSY, wheel

1шт.

113218C1

BAR

cylinder arm repair

1шт.

2

484029R1

HUB

wheel

2шт.

3

546482R1

SPROCKET ASSY.

SPROCKET, wheel drive, 15 T

1шт.

4

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

ball

4шт.

5

546463R1

CYLINDER END CAP

BUSHING, chain tightener

2шт.

6

547956R1

WASHER

retaining, replaces 546483R1 by also ordering washer, 547954R1

2шт.

7

547954R1

WASHER

wear

1шт.

8

484434R1

ROD

axle

2шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

9

484031R2

SPACER

wheel bearing

2шт.

10

2072A

VALVE SPRING

SPRING, chain tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

11

463034R1

RIM

WHEEL, planter drive, 14 in., 14 x 5 KB rim for 8.00-14 tire

2шт.

11

481344R91

WHEEL

planter drive, 14 in., 14 x 8 KB rim for 9.50L-14 tire, for high floatation

2шт.

11

622192R91

WHEEL

planter drive, 15 in., 15 x 5 KB rim for 7.60-15 tire

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

387841R91

VALVE

TR-413 tubeless type

2шт.

12

546484R1

ARM

ASSY, drive chain tightener LH, for dial-a-rate

1шт.

12

546485R1

ARM

ASSY, drive chain tightener RH

1шт.

13

CHAIN, roller drive, use 61 links 1-1/4 AGR ext pitch transmission roller chain from a 10 ft roll marked, 569089R91 and one connecting link, 587372R91

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF STR lub, in cylinder bracket retainer

1шт.
