Запчасти Case IH 400 (YB-26) - LIQUID FERTILIZER TANK HOSES AND FITTINGS, 6 AND 8-ROW

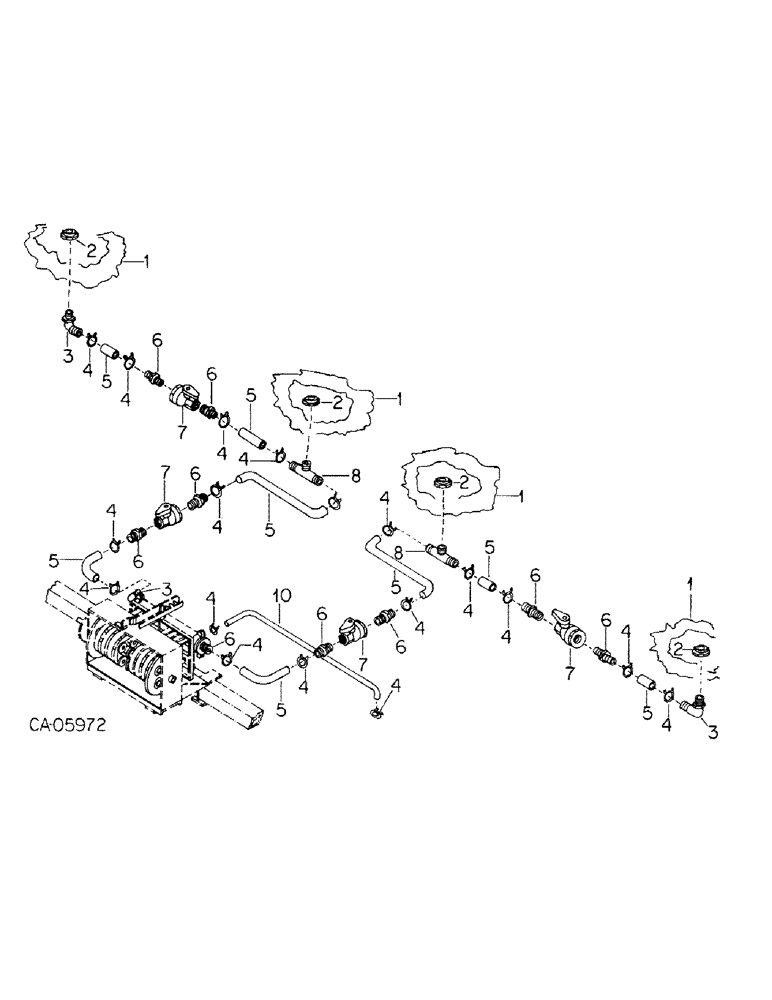

Схема запчастей Case IH 400 - (YB-26) - LIQUID FERTILIZER TANK HOSES AND FITTINGS, 6 AND 8-ROW
1
8
2
6
6
3
4
5
4
3
10
2
6
4
4
5
5
6
3
5
4
1
7
4
6
2
6
4
5
4
6
5
4
6
4
5
8
4
7
4
4
1
2
7
4
4
4
7
1
4
5
6

Артикул

Название

Примечание

Количество

1

FIBERGLASS TANK FOR LIQUID FERTILIZER, refer to liquid fertilizer tank and supports

1шт.

2

137029C91

FITTING ASSY, tank outlet, 4 for 8-row, 3 for 6-row

4шт.

3

134271C1

ELBOW

FITTING, elbow

3шт.

4

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP, hose no. 20, 16 for 8-row, 12 for 6-row

1шт.

5

HOSE, liquid fertilizer tank, use 25 ft from a roll marked 134329C1, for 8-row

1шт.

5

HOSE, liquid fertilizer tank, use 15 ft from a roll marked 134329C1, for 6-row

1шт.

6

134270C1

FITTING

straight, 9 for 8-row, 7 for 6-row

1шт.

7

134285C1

SHUT-OFF VALVE

VALVE, nylon, 4 for 8-row, 3 for 6-row

1шт.

8

137323C1

TEE, 3/4 MPT x 1 in. male pipe

1шт.

9

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, spring wire hose no. 13, 16 for 8-row, 12 for 6-row

1шт.

10

HOSE, pump outlet 8-row, use 68 ft from a roll marked 131331C1

1шт.

10

HOSE, pump outlet 6-row, use 25 ft from a roll marked 134331C1

1шт.

Выбрано товаров: 12
