Запчасти Case IH 400 (YB-20) - DOUBLE DISK OPENER, QUANTITIES SHOWN ARE PER ROW

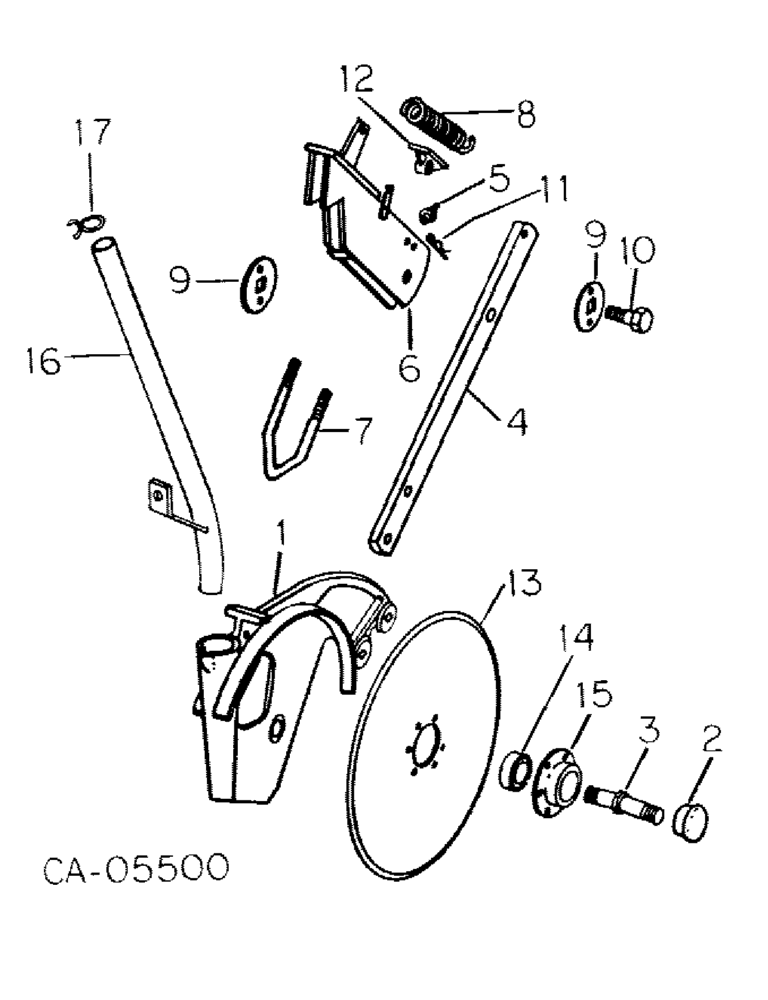

Схема запчастей Case IH 400 - (YB-20) - DOUBLE DISK OPENER, QUANTITIES SHOWN ARE PER ROW
9
1
13
10
7
12
11
15
3
9
8
6
2
16
4
5
17
14

Артикул

Название

Примечание

Количество

1

546891R2

BOOT

double disk fertilizer

1шт.

2

492709R1

CAP

brg housing

2шт.

3

492750R1

BOLT,5/8" - 11

double disk tie

1шт.

22258R1

WASHER

21/32 x 1 x 22 ga znd

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd hex. jam

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8-11 znd hex. jam LH THD

1шт.

4

546892R1

BAR, fertilizer draw

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

19700R91

FITTING

3/16 hole 45D lub

1шт.

6

546893R2

BRACKET ASSY, hd

1шт.

7

484386R1

BOLT,5/8" - 11 x 6.1"

U-BOLT, lift arm

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 11 ga.

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

8

487236R2

SPRING

pressure rod

1шт.

9

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

2шт.

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 C-Z std-hd

1шт.

10

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

drawbar pivot

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897R

NUT, 3/4-10 znd hex. jam

1шт.

11

586591R1

COTTER PIN

PIN, quick attachable cot.

1шт.

12

546901R1

STOP

depth adjusting

1шт.

13

492756R1

DISC

DISK, opener 13-1/2 in.

2шт.

14

492710R1

RETAINER

FLANGE, bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd solid

6шт.

15

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, replaces 492757R91

2шт.

15

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

16

548884R2

TUBE

ASSY

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

17

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, no. 13 type E hose

2шт.

Выбрано товаров: 33
