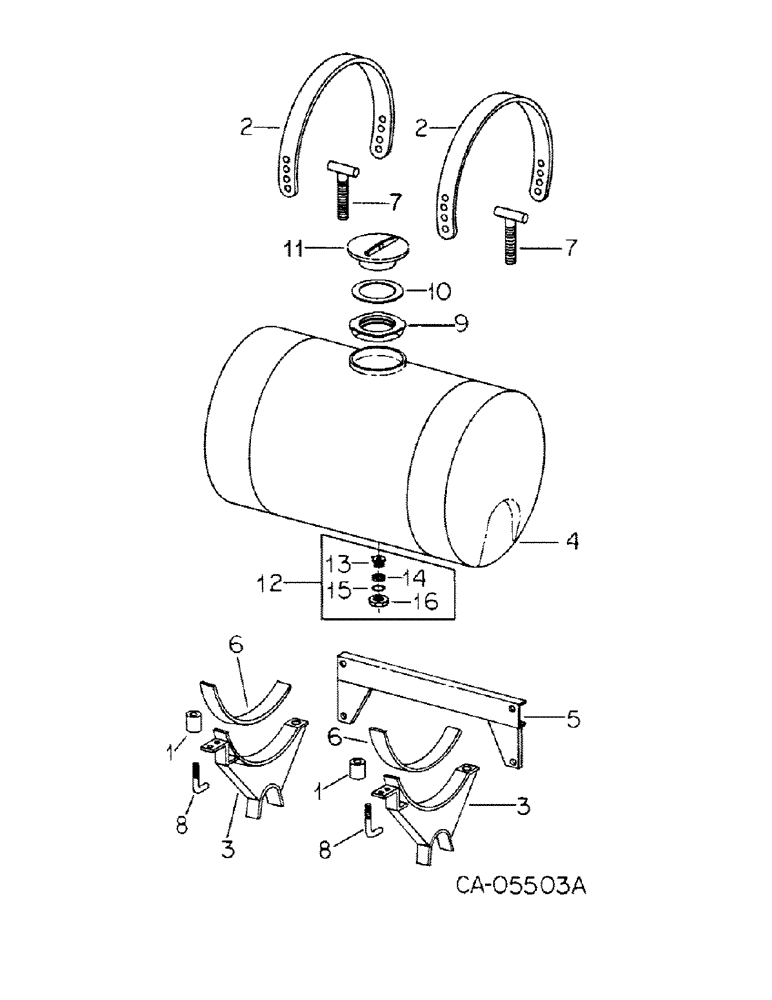

Запчасти Case IH 400 (YB-19) - LIQUID FERTILIZER TANK AND SUPPORTS

1

128875C1

SPACER, flotation, 2 per tank

1шт.

2

128876C1

BAR, saddle-band, 2 per tank

1шт.

3

128877C1

BRACKET, side, 110 gallon tank, 2 per tank

1шт.

3

128878C1

BRACKET, side, 65 gallon tank, 2 per tank

1шт.

4

128879C1

TANK

ASSY, 110 gallon, 2 for 6 row

1шт.

4

128880C1

TANK ASSY, 65 gallon, 2 for 4 row, 4 for 8 row

1шт.

5

128881C1

BRACE, 110 gallon tank front, 1 per tank

1шт.

5

128882C1

BRACKET

BRACE, 65 gallon tank front, 1 per tank

1шт.

6

128883C1

STRIP, saddle, liner, 110 gallon tank, 2 per tank

1шт.

6

128884C1

STRIP, saddle, liner, 65 gallon tank, 2 per tank

1шт.

7

128885C1

BOLT,T, 5/16" - 18 x 4 1/2"

special T, 2 per tank

1шт.

8

128886C1

BOLT, special J, 2 per tank

1шт.

9

137014C1

NECK, 5 in. fillwell, 2 for 4 and 6-row, 4 for 8-row

1шт.

10

137016C1

GASKET

cover, 2 for 4 and 6-row, 4 for 8-row

1шт.

11

137015C91

COVER

w/GASKET, 5 in. fillwell 2 for 4 and 6-row, 4 for 8-row

1шт.

12

137029C91

FITTING ASSY, tank outlet, 2 for 4 and 6-row, 4 for 8-row

1шт.

13

137030C1

FITTING, 3/4 in. center portion 2 for 4 and 6-row, 4 for 8-row

1шт.

14

137031C1

GROMMET, no. 5 viton 2 for 4 and 6-row, 4 for 8-row

1шт.

15

137032C1

GASKET, no. 5 nylon-washer 2 for 4 and 6-row, 4 for 8-row

1шт.

16

137033C1

NUT, STD fitting 2 for 4 and 6-row, 4 for 8-row

1шт.
