Запчасти Case IH 400 (YB-12) - LIQUID FERTILIZER TANK HOSES AND FITTINGS, 4 ROW

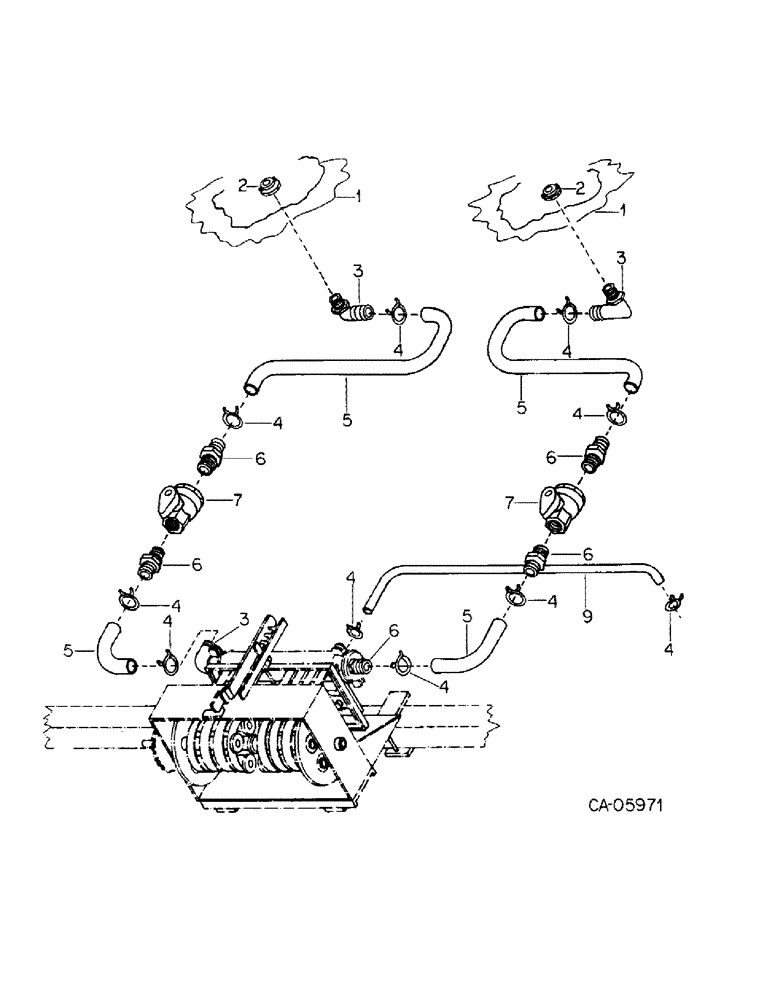

Схема запчастей Case IH 400 - (YB-12) - LIQUID FERTILIZER TANK HOSES AND FITTINGS, 4 ROW
6
4
4
6
1
4
4
2
7
1
4
3
4
6
7
6
5
3
6
4
2
3
5
4
4
5
4
5
9

Артикул

Название

Примечание

Количество

1

FIBERGLASS TANK FOR LIQUID FERTILIZER, refer to liquid fertilizer tank and supports

1шт.

2

137029C91

FITTING ASSY, tank outlet

2шт.

3

134271C1

ELBOW

FITTING, elbow

3шт.

4

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP, no. 20 hose

8шт.

4

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, no. 13 spring wire

8шт.

5

HOSE, liquid fertilizer tank, use 15 ft from a roll marked 134329C1

1шт.

6

134270C1

FITTING

straight

5шт.

7

134285C1

SHUT-OFF VALVE

VALVE, nylon

2шт.

8

(Not used in this application)

1шт.

9

HOSE, pump outlet, use 25 ft from a roll marked 134331C1

1шт.

Выбрано товаров: 10
