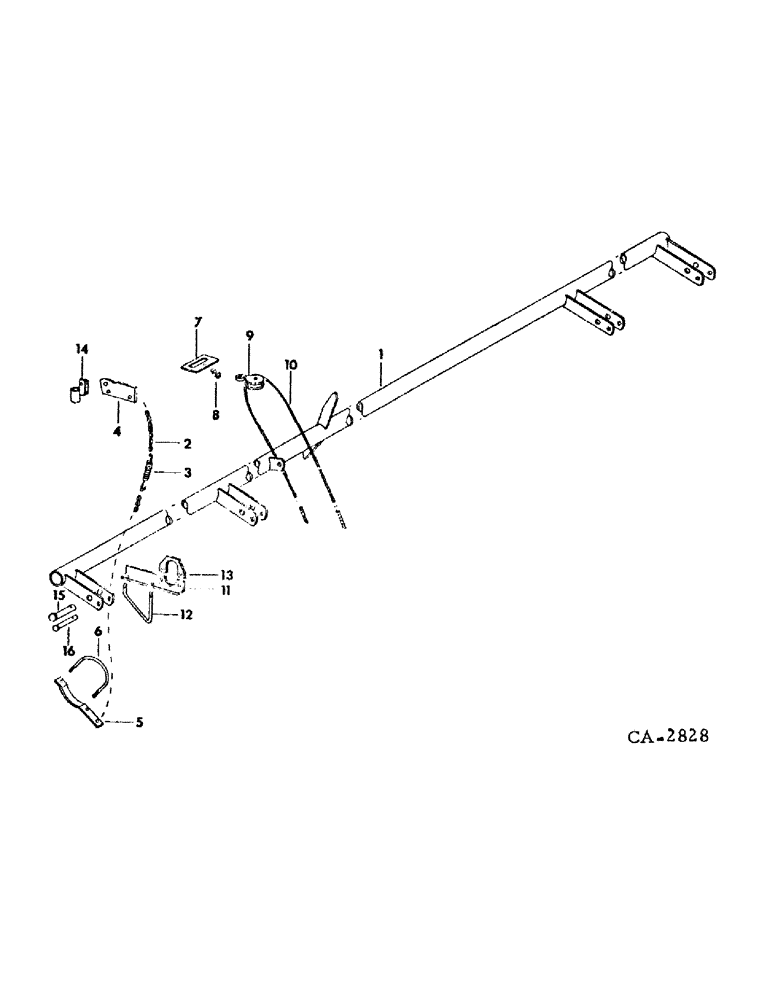

Запчасти Case IH 400 (YB-07) - LIQUID FERTILIZER CONTROLS

1

548887R2

ROCKSHAFT ASSY, 8 row

1шт.

1

548895R2

ROCKSHAFT ASSY, 4 row and 6 row narrow

1шт.

1

548893R2

ROCKSHAFT ASSY, 6 row wide

1шт.

2

478487R1

CHAIN, valve control 68 in.

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

3

543743R2

SPRING

control chain, replaces 943045R1

1шт.

4

493678R1

ARM, valve control

1шт.

21815R1

PIN, 5/16 x 11/16 C-Z std-hd 5/16" x 11/16"

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

5

548897R1

BRACKET, throwout

1шт.

6

548898R1

U-BOLT, throwout

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

549597R1

BAR, pulley mounting

1шт.

8

512749R1

HOOK

S-HOOK, pulley

1шт.

9

514938R91

PULLEY, rope throwout

1шт.

10

486775R1

ROPE

throwout

1шт.

11

548899R1

ANGLE, bearing

1шт.

12

548900R1

U-BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

548901R1

BEARING

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

14

474694R91

PIVOT ASSY, pull chain

1шт.

15

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

16

22749R1

PIN,5/16" x 2 1/8"

5/16 x 2-1/8 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
