Запчасти Case IH 400 (YB-05) - LIQUID FERTILIZER TANK AND SUPPORTS

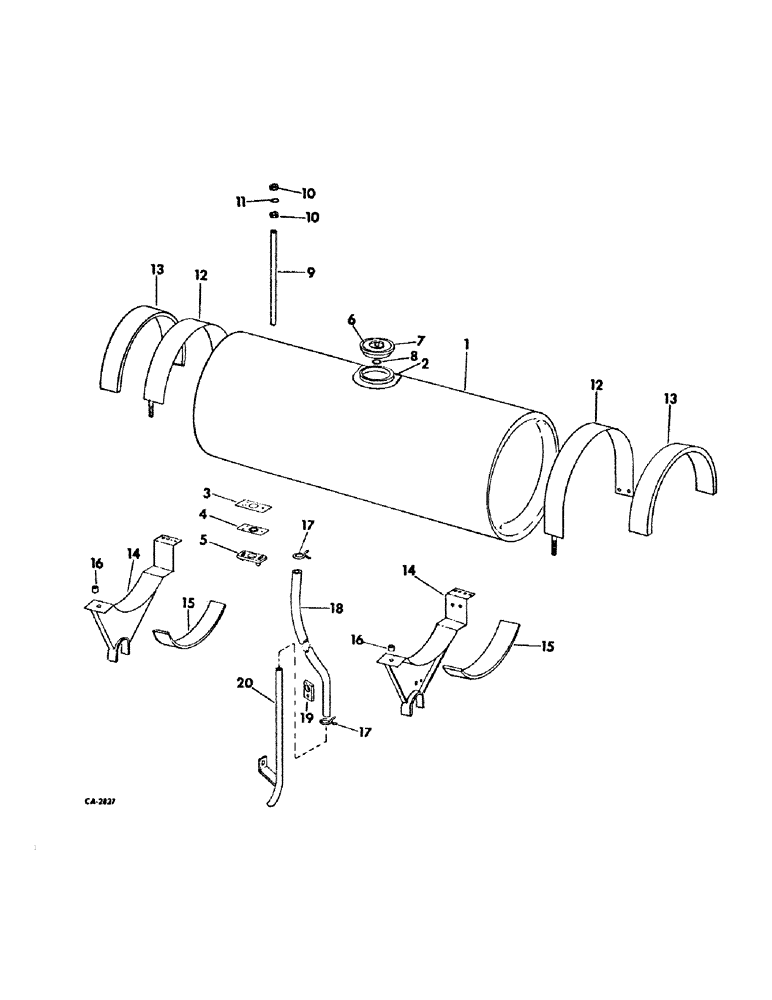

Схема запчастей Case IH 400 - (YB-05) - LIQUID FERTILIZER TANK AND SUPPORTS
4
11
16
9
15
7
1
18
2
13
6
16
20
19
10
13
15
17
8
12
5
12
14
10
3
14
17

Артикул

Название

Примечание

Количество

1

548874R91

TANK w/VALVE HOUSING, 60 gallons

1шт.

1

493658R91

TANK w/VALVE HOUSING, 100 gallons

1шт.

2

55556C1

BODY

filler well

1шт.

3

493007R1

PLATE, support

1шт.

4

493006R1

GASKET, valve housing

1шт.

5

484740R2

HOUSING, valve

1шт.

492999R1

SCREW, 5/16-18 x 1 stainless steel hex-hd tap.

3шт.

484699R1

BOLT, 5/16 x 1-3/4 stainless-stl hex-hd mach

3шт.

484700R1

NUT

5/16-18 stainless-stl hex.

3шт.

6

474676R93

CAP

ASSY, filler well

1шт.

6

469918R3

CAP

ASSY, filler well, for squeeze pump application

1шт.

7

474677R3

GASKET

filler well cap

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 x 3/32, used w/cap assy, 474676R93

1шт.

9

493663R1

PIPE, tank vent

1шт.

10

474675R1

NUT, vent pipe lock

2шт.

11

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8, vent pipe

1шт.

12

548877R1

STRAP ASSY, clamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

548879R1

PAD, clamp strap

2шт.

14

548880R2

SUPPORT ASSY, tank

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

15

548883R1

PAD, tank

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

16

547448R1

SPACER

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

4шт.

17

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, 5/8

2шт.

17

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, no. 13 type E hose

2шт.

18

HOSE, valve outlet, use length as required of 5/8 ID hose from a 100 ft roll marked, 526604R1

1шт.

19

479263R1

STRIP, hose retaining

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

548884R2

TUBE

ASSY

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

475203R1

FITTING, tank outlet, for squeeze pump application

1шт.

474703R2

WASHER, tank outlet fitting, for squeeze pump application

1шт.

Выбрано товаров: 43
