Запчасти Case IH 400 (A-022) - SEED DRUM

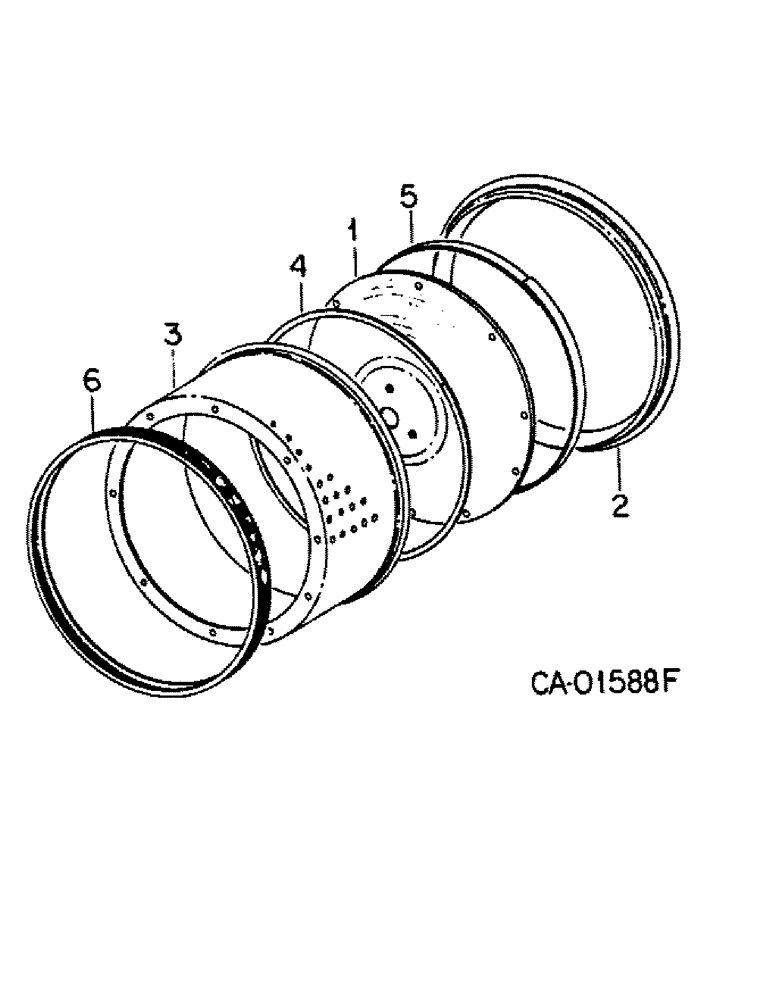

Схема запчастей Case IH 400 - (A-022) - SEED DRUM
1
5
3
2
4
6

Артикул

Название

Примечание

Количество

1

145113C1

CAP

end, replaces 546404R1

1шт.

27115R1

BOLT,Oval, 10" - 24 x 5/8"

SCREW, no. 10 x 5/8 PHC o/hdcr mach

8шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

8шт.

2

546403R3

SEAL

drum

1шт.

3

549967R92

DRUM

PACKAGE, bean seed drum, 72 holes per row, pocket type D

1шт.

3

58433C92

DRUM

PACKAGE, beet seed drum, 36 holes per row, pocket type G

1шт.

3

63813C92

ATTACHMENT

PACKAGE, beet seed drum, 72 holes per row, pocket type G

1шт.

3

549963R92

DRUM

PACKAGE, pelleted beet seed drum, 36 holes per row, pocket type C

1шт.

3

546632R92

DRUM

PACKAGE, corn seed drum, 24 holes per row, pocket type A

1шт.

3

60269C92

DRUM

PACKAGE, corn seed drum, 36 holes per row, pocket A

1шт.

3

549969R92

ATTACHMENT

PACKAGE, cotton seed drum, 96 holes per row, pocket type E

1шт.

3

60648C92

DRUM

PACKAGE, cotton & soybean seed drum, 144 holes per row, pocket type F

1шт.

3

549965R92

DRUM

PACKAGE, popcorn & sunflower seed drum, 24 holes per row, pocket type B

1шт.

3

61143C92

DRUM

PACKAGE, popcorn & sunflower seed drum, 36 holes per row, pocket type B

1шт.

3

546633R92

DRUM

PACKAGE, sorghum seed drum, 72 holes per row, pocket type C

1шт.

3

58435C92

DRUM

PACKAGE, sorghum seed drum, 144 holes per row, pocket type C

1шт.

3

546634R93

DRUM

PACKAGE, soybean seed drum, 144 holes per row, pocket type H

1шт.

3

1264085C91

PACKAGE, sunflower seed drum, 24 holes per row, pocket type J

1шт.

4

SEAL, drum, .06 x .31 x 63.5 in. long, make from 200 ft. roll marked, 57554C1

1шт.

5

60303C4

RING, SNAP

RING, seal retaining

1шт.

61624C1

SEALANT

ADHESIVE, 5 ounce tube, use to adhere retainer ring to drum seal

1шт.

6

56539C2

BELT

seed drum, for 24 hole drum, for use when planting seed corn w/butterfly tips

1шт.

6

57669C3

BELT

Seed drum, For rows one and six of seed drum when used on 4-row planter

2шт.

63280C1

PACKAGE

seed drum belt service, for 2 rows, used to aid in the planting of long slender corn seeds or seeds with, butterfly tips, for 36 hole drum, consists of (1) belt (NSS), (1) fastener (NSS), (1) instructions (NSS)

1шт.

Выбрано товаров: 24
