Запчасти Case IH 400 (A-015) - SEED HOPPER AND MOUNTING

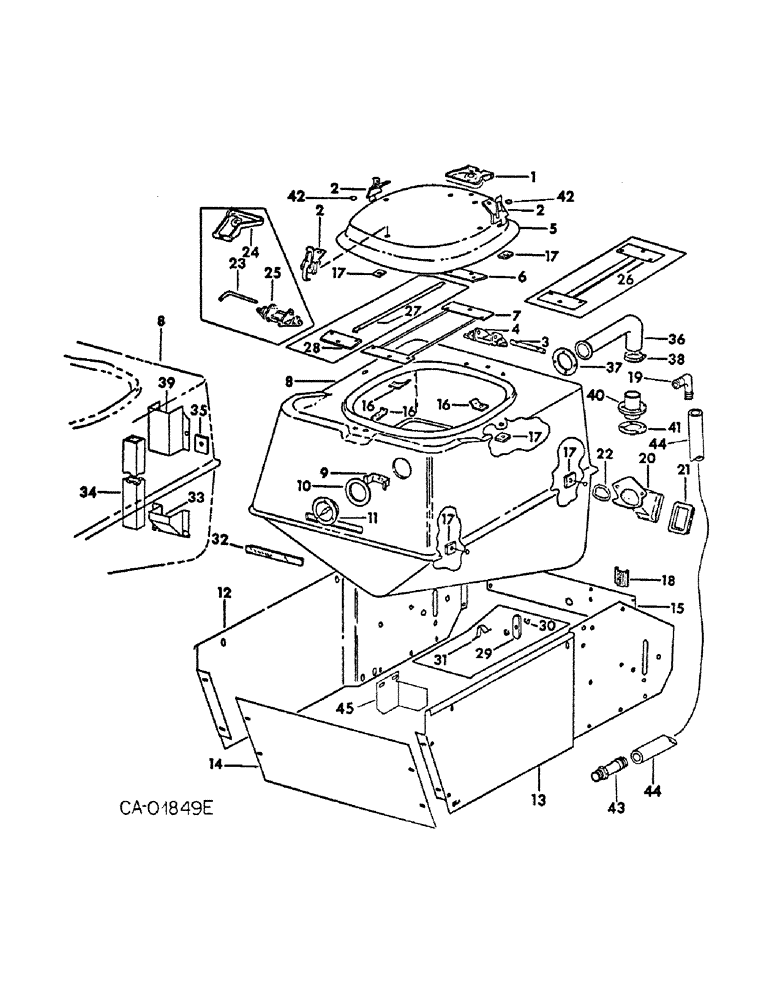

Схема запчастей Case IH 400 - (A-015) - SEED HOPPER AND MOUNTING
20
39
10
13
18
42
37
6
38
34
28
43
25
42
16
11
22
31
3
26
29
32
2
30
17
24
2
14
1
27
8
21
23
45
12
17
2
44
5
15
35
33
19
41
36
9
17
8
4
16
7
44
17
40
16

Артикул

Название

Примечание

Количество

1

546325R1

HINGE

hopper lid

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

2

549768R1

LATCH

replaces latch assy, 548620R91 w/rivets and washers

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

20824R1

WASHER

11/32 x 1-1/2 x 16 ga C-Z

2шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

3шт.

3

547276R1

PIN

pivot lid

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

2шт.

4

546327R1

PIVOT

lid

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

5

548626R1

LID

ASSY w/PRODUCT GRAPHIC, 113483C1, hopper, for service on machines w/serial no. 1607 and below also order, (3) latch 549768R1, (3) clip 548622R1, (6) bolt 16897R1, (6) nut 120376, (6) washer 120214

1шт.

6

546405R1

PLATE, hopper reinforcement

1шт.

7

546328R1

GUARD ASSY, hopper

1шт.

8

60219C91

HOPPER

ASSY., seed, 4 and 6 row serial no. 60299 and below, Replaces 548617R1 and 57387C91 by also ordering ref. no. 20, 42 and attaching harfware

1шт.

For service on machines w/serial no. 1607 and below also order, 1 hopper lid 548626R1, 3 latch 549768R1, 3 clip 548622R1, 6 bolt 16897R1, 6 nut 120376, 6 washer 120214

1шт.

8

60220C91

HOPPER

ASSY, seed, 8 row, 4 and 6 row special no. 60300 and above, replaces 57390C91 by also ordering ref. nos. 20, 42 and attaching hardware

1шт.

9

BRACKET, gauge retaining, order 149128C91

1шт.

10

546988R1

GASKET

air gauge

1шт.

11

149128C91

GAUGE

air pressure, replaces 149129C1

1шт.

12

546322R31

SUPPORT w/PRODUCT GRAPHIC, 545403R1, hopper and blower RH, serial no. 9048 and below

1шт.

12

57370C4

SUPPORT w/PRODUCT GRAPHIC, 113484C1, hopper and blower RH, serial no. 9049 and above, serial no. 60299 and below

1шт.

12

113261C1

CLUTCH

driven, serial no. 60300 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

12шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

546321R3

SUPPORT, hopper & blower LH, serial no. 9048 and below

1шт.

13

100010C4

SUPPORT, hopper & blower LH, replaces 57367C1, serial no. 9049 and above

1шт.

14

546316R1

COVER, support plate front, serial no. 9048 and below

1шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16-18 x 1/2 C-Z hex-hd tap

4шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

5/16 ext tooth lock

4шт.

14

57369C1

PANEL, front, serial no. 9049 and above

1шт.

172480

SCREW,Hex, 3/8" - 16 x 5/8"

3/8-16 x 5/8 C-Z type D hex-hd tap

4шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

15

113164C91

PLATE w/PRODUCT GRAPHIC, 61907C1, replaces 548366R1, 4 and 6 row

1шт.

15

113165C91

SUPPORT

PLATE w/PRODUCT GRAPHIC, 61907C1 & 819809C1, replaces 548811R1, 8 row

1шт.

15

546344R1

PLATE ASSY, rear, serial no. 1607 and below

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

16

548622R1

CLIP

locking

3шт.

17

547692R1

PAD

seed hopper and lid latch

9шт.

18

398976R1

BRACKET

SOCKET, slow moving vehicle emblem mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

19

547464R1

ELBOW

FITTING, 90 deg elbow hose shank, 4 and 6 row serial no. 60299 and below

1шт.

150450H1

LOCK NUT

NUT, 1-8 in. pipe lock

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

2шт.

20

546348R3

COUPLING

seed tube

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16-18 x 3/4 znp slt-pan-head mach

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. flange lock

3шт.

21

57395C1

SEAL

tube upper, will work for 546349R1 by also ordering clamp, 57730C1

1шт.

57730C1

CLAMP

seal

1шт.

22

60218C1

GASKET

coupling

1шт.

23

546326R1

ROD, pivot hinge, serial no. 1607 and below

1шт.

24

546325R1

HINGE

hopper lid, serial no. 1607 and below

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

25

546327R1

PIVOT

lid, serial no. 1607 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

NLS

NO LONGER SERVICED

3/8 znd reg lock

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

26

BRACE ASSY, hopper lid, for service replacement order (1) brace 548139R1, (2) plate 546405R1

1шт.

27

548139R1

BRACE, lid, machines w/serial no. 1607 and below and equipped w/ref. nos. 23, 24 and 25

1шт.

28

546405R1

PLATE, hopper reinforcement, machines w/serial no. 1607 and below and equipped w/ref. nos. 23, 24 and 25

2шт.

29

546347R1

ARM, wheel stop, serial no. 1607 and below

1шт.

30

324653R1

SNAP RING,#50, Ext

Ring, Snap, , serial no. 1607 and below #50, Ext

2шт.

31

546400R1

LUG, opening, serial no. 1607 and below

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

445135

NUT

10-24 fl spring

2шт.

32

57731C91

WINDOW

ASSY, seed hopper, 4 and 8 row serial no. 60299 and below

1шт.

33

58047C1

BAFFLE

ASSY, air tube, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

34

57399C1

TUBE

air, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

35

57560C1

CLAMP

air tube, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

36

57581C1

HOSE

hopper air, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

37

57561C1

PLATE

clamping, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16-18 x 3/4 znp slt-pan-hd mach

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

38

21240R1

CLAMP, 3-1/2 in. type D, 8 row

1шт.

38

995224R1

CLAMP

type F, 4 and 6 row serial no. 60300 and above

1шт.

39

57567C1

COVER

hopper air hose, 8 row, 4 and 6 row serial no. 60300 and above

1шт.

440-13110

SCREW,Cross Pan Hd, 5/16"-18 x 5/8"

5/16-18 x 5/8 znp slt-pan-hd mach

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

40

57582C1

COUPLING

air hose, 4 and 6 row serial no. 60300 and above

1шт.

41

57580C1

GASKET

coupling, 8 row

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .060 znd

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

42

542535R1

GASKET

rubber

1шт.

43

547465R1

FITTING, straight hose shank, 4 and 6 row serial no. 60299 and below

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

2шт.

150450H1

LOCK NUT

NUT, 1-9 in. pipe lock

2шт.

44

HOSE, hopper pressure, 4 and 6 row, 4 and 6 row serial no. 60299 and below, use 38 in. from a 100 foot roll marked, 546541R2

1шт.

45

128690C1

SUPPORT, safety, shield, belt driven blower

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

Выбрано товаров: 119
