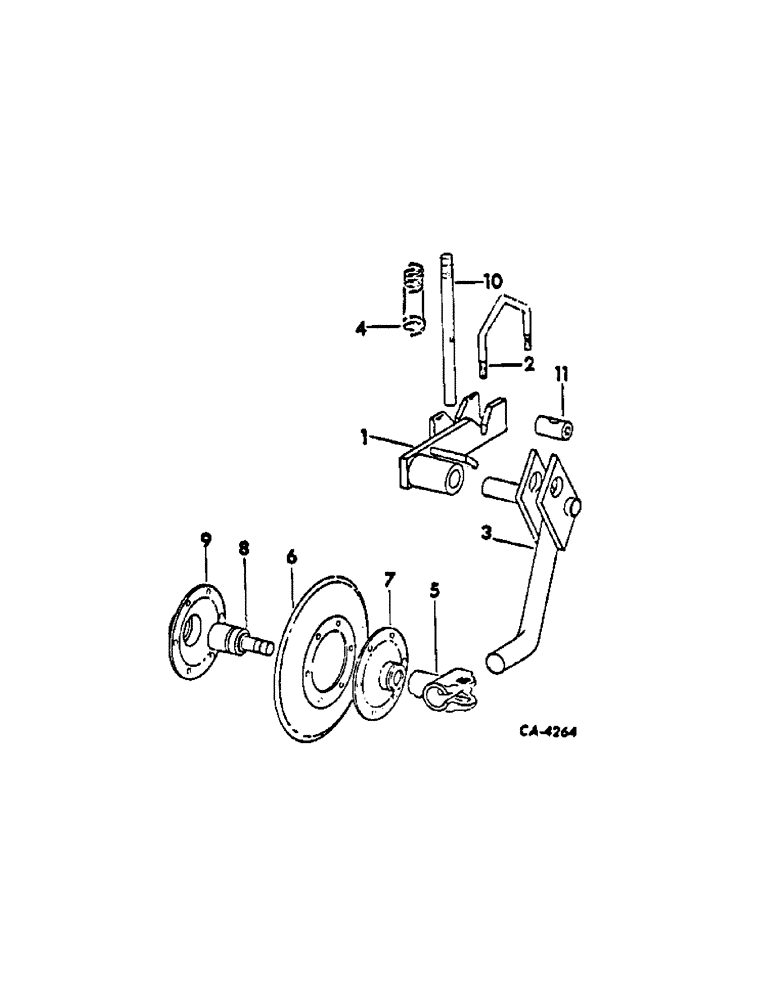

Запчасти Case IH 386 (AF-06) - DISK COVERING ATTACHMENT, QUANTITIES SHOWN ARE PER PLANTER UNIT

1

58079C1

ARM

ASSY, pivot LH

1шт.

1

58080C1

ARM

ASSY, pivot RH

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

2шт.

2

492800R1

BOLT,3/8" - 16 x 3.0"

U-BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

3

58077C1

ARM

ASSY, disk LH

1шт.

3

58078C1

ARM

ASSY, disk RH

1шт.

21762R1

WASHER

29/32 x 1-3/8 x .120 C-Z

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

ext prong 3/16" x 1 1/2"

2шт.

4

652032C1

VALVE SPRING

SPRING, depth

2шт.

607895R1

WASHER

17/32 x 1 x .120 C-Z

2шт.

5

478032R1

CLAMP

axle

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 zn sq-hd cup-pt set

2шт.

6

480674R1

DISC

DISK, 9-1/4 in. diameter

2шт.

480679R1

WASHER

dirt seal felt

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

7

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

8

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

9

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

10

58086C1

ROD

spring & depth

2шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

4шт.

11

58084C1

PIVOT

SWIVEL, spring rod

2шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 sq-hd cup-pt set

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

.938 x 1.750 x .108 znd

4шт.
