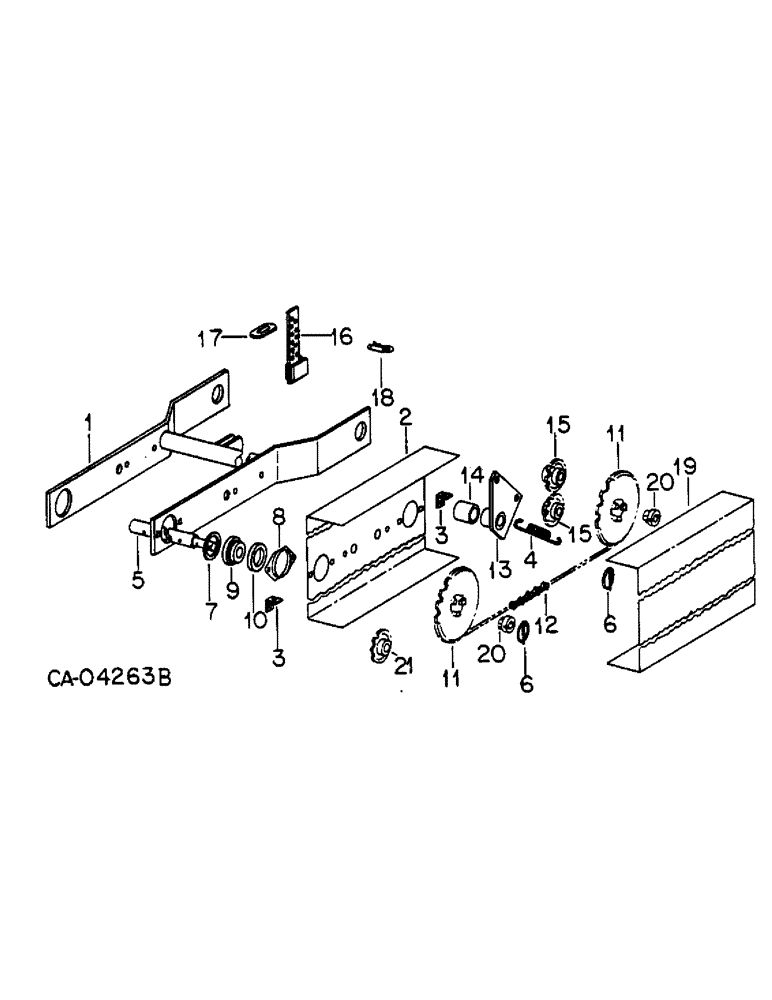

Запчасти Case IH 386 (AF-05) - PRESS WHEEL FRAME, QUANTITIES SHOWN ARE PER PLANTER UNIT

1

61262C1

FRAME

ASSY, press wheel

1шт.

2

61260C1

GUARD

chain

1шт.

3

61261C1

CLIP

spring tightener

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

4

PO7

SPRING

chain tightener

1шт.

5

61264C1

AXLE

press wheel

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

6

373025R91

PIN ASSY.

PIN, quick attachable

2шт.

7

551854R1

WASHER

retaining, or as required

2шт.

8

492665R1

FLANGE

TTE, bearing

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

9

165482C91

BEARING ASSY,19.05mm ID x 42mm OD x 12mm W

w/o locking collar

2шт.

10

165483C11

BEARING

COLLAR W/SET SCREW, locking

2шт.

11

546517R1

SPROCKET ASSY.

SPROCKET, 8T cast iron

2шт.

11

134234C1

SPROCKET ASSY.

SPROCKET, 8T steel

2шт.

11

546514R1

SPROCKET ASSY.

SPROCKET, 10T cast iron

2шт.

11

134235C1

SPROCKET ASSY.

SPROCKET, 10T steel

2шт.

11

484197R2

SPROCKET ASSY.

SPROCKET, 12T cast iron

2шт.

11

134237C1

SPROCKET ASSY.

SPROCKET, 12T steel

2шт.

11

484196R2

SPROCKET ASSY.

SPROCKET, 17T cast iron

2шт.

11

134241C1

SPROCKET ASSY.

SPROCKET, 17T steel

2шт.

11

61259C1

SPROCKET ASSY.

SPROCKET, 19T cast iron

2шт.

11

141492C1

SPROCKET ASSY.

SPROCKET, 19T steel

2шт.

12

CHAIN, drive, use 62 links from 10 ft. roll marked 569088R91 & 1 connecting link 457113R91 & 2 offset links 457114R91 & 1 roller link 457112R91

1шт.

13

64531C1

LEVER

TIGHTENER ASSY, chain LH, replaces 61266C1 by also ordering two bolts, 25283R1 and four nuts, 120238

1шт.

13

64532C1

LEVER

TIGHTENER ASSY, chain RH, replaces 61267C1 by also ordering two bolts 25283R1 and four nuts 120238

1шт.

25283R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 phc hex-hd mach drld

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

4шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 hex-hd mach

1шт.

608701R1

WASHER

.656 x 1.25 x .054 znd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

14

61270C1

SPACER

BUSHING

2шт.

15

472344R3

SPROCKET

6T idler

2шт.

16

546976R1

STRAP

ASSY, depth adjusting

1шт.

24554R1

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1 C-Z std-hd hardened

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

17

100095C1

BAR

WASHER, press wheel adjusting, .125

1шт.

17

546974R1

WASHER

press wheel adjusting, .059

6шт.

18

473865R91

LINCH PIN

PIN W/SLT SPRING PIN, depth stop

2шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

2шт.

19

61271C1

COVER ASSY

chain

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

61257C1

HUB

sprocket

2шт.

21

61258C1

SPROCKET ASSY.

SPROCKET, 6T, hopper sprocket

1шт.
