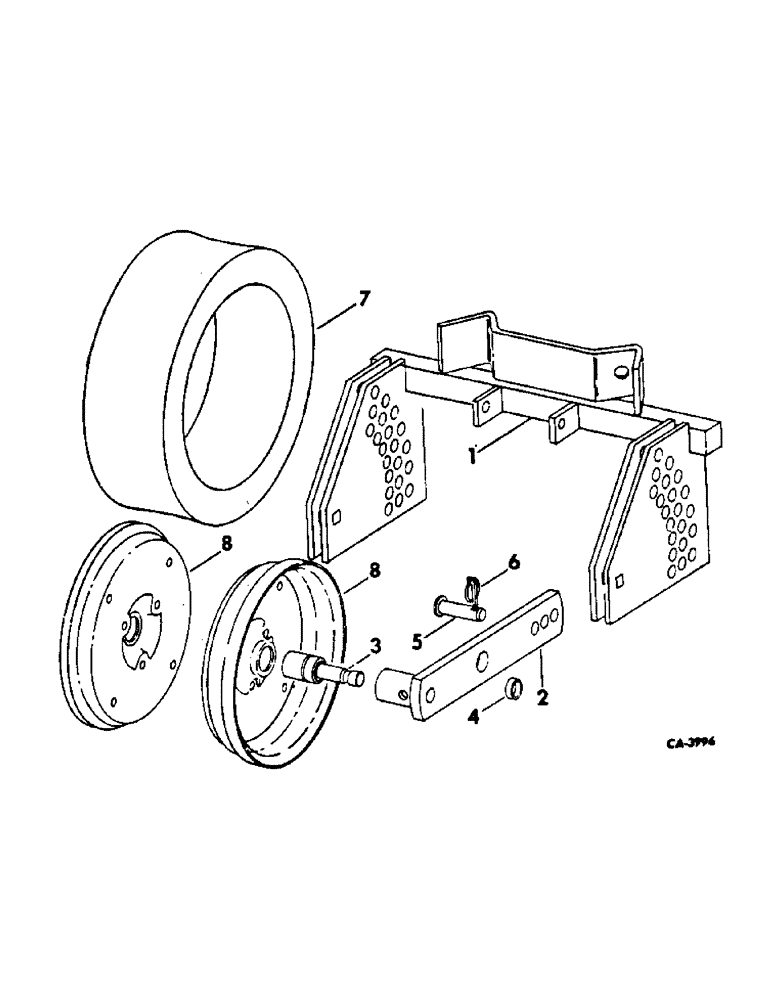

Запчасти Case IH 386 (AF-22) - GAUGE WHEEL, QUANTITIES SHOWN ARE PER ROW

1

60657C1

FRAME

ASSY

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

2

60662C1

ARM

ASSY

2шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 znd hex-soc-hd set

2шт.

3

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING, ball

2шт.

4

29793B

SPACER

arm pivot

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

60664C1

PIN

adjusting

2шт.

6

479696R91

AXLE PIN

PIN ASSY, linch

2шт.

7

516492R1

TYRE/TIRE

TIRE, zero pressure 4 x 12

2шт.

8

526768R1

WHEEL

RIM, gauge wheel 4 x 12

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

14шт.
