Запчасти Case IH 386 (AF-19) - COTTON PLANTING EQUIPMENT, QUANTITIES SHOWN ARE PER ROW

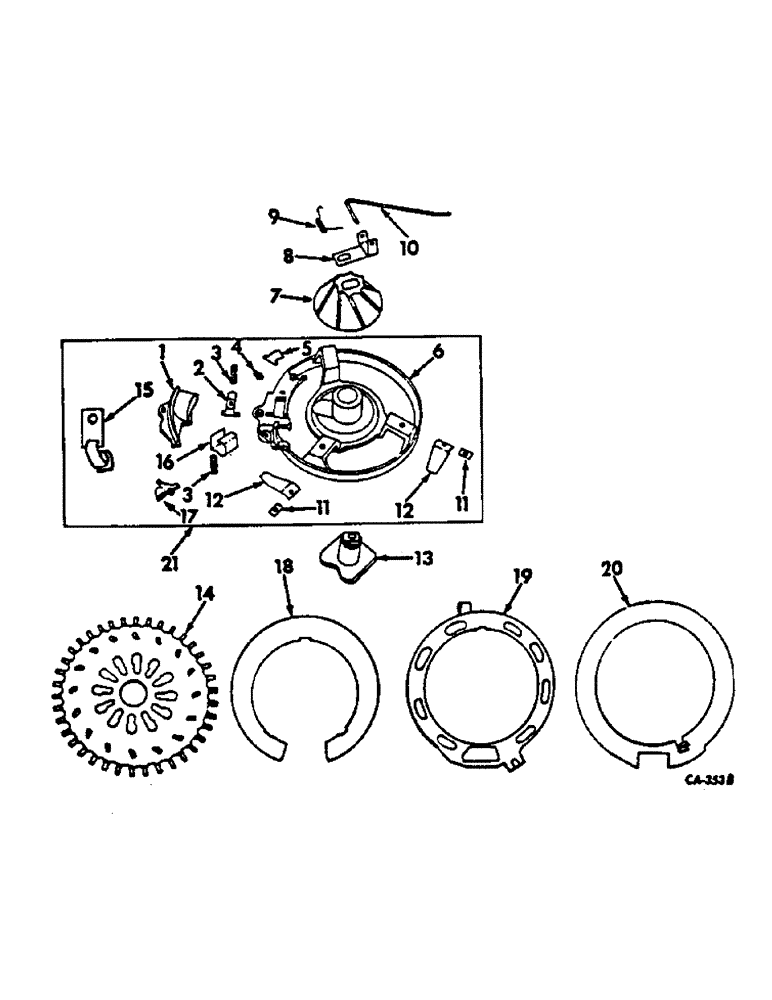

Схема запчастей Case IH 386 - (AF-19) - COTTON PLANTING EQUIPMENT, QUANTITIES SHOWN ARE PER ROW
3
15
13
1
11
6
9
5
14
12
11
12
19
3
2
8
18
7
17
10
16
20
4
21

Артикул

Название

Примечание

Количество

1

486796R2

CAP

pawl cover

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 znd hex-hd cap

1шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

1шт.

2

621721R6

KNOCKER

1шт.

3

PO51

SPRING

cut-off and knocker

2шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub

1шт.

5

13607AB

HINGE

GATE, hinged

1шт.

6

BOTTOM W/FITTING, 125617 assy, order bottom assy, 542735R91

1шт.

7

621716R1

PLATE

PALTE, cotton agitator

1шт.

8

621725R93

BRACKET

ARM ASSY, agitator

1шт.

9

PO26760

SPRING

agitator

1шт.

10

622259R1

ARM

spring agitator

1шт.

11

445135

NUT

10-24 machine spring

2шт.

12

PO16047A

VALVE SPRING

SPRING, seed

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-rd-hd mach

2шт.

13

492753R1

BLOCK DRIVER

STUD, agitator drive

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

5/8-16 znd hex

1шт.

551173R1

WASHER

13/32 x 1-1/8 x 16 ga

1шт.

14

621717R3

PLATE

cotton seed, 38 cells, requires filler ring, 622481R1

1шт.

14

621719R3

PLATE

cotton seed, 42 cells

1шт.

14

622424R1

PLATE

gin run cotton seed, 19 cells

1шт.

14

622480R1

PLATE

acid delinated cotton seed, requires filler ring, 622481R1

1шт.

14

477025R1

PLATE

machine delinated cotton seed, 16 cells 5/16 x 11/32

1шт.

14

477026R1

PLATE

machine delinated cotton seed, 16 cells 3/8 x 13/32

1шт.

14

477027R1

PLATE

machine delinated cotton seed, 16 cells 7/16 x 17/32

1шт.

14

477028R1

PLATE

machine delinated cotton seed, 16 cells 1/2 x 19/32

1шт.

14

100137C1

PLATE

machine delinated cotton seed, 24 cells 7/16

1шт.

14

100138C1

PLATE

machine delinated cotton seed, 24 cells 1/2

1шт.

15

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

1шт.

16

492519R1

SPRING

RETAINER, wear ring spring, used only w/492754R1

3шт.

17

621723R1

KNIFE

CUT-OFF

1шт.

18

488816R2

PLATE ASSY.

RING, wear, used only w/492754R1

1шт.

19

492754R1

PLATE, hopper bottom

1шт.

19

59999C1

PLATE

hopper bottom, solid cast iron

1шт.

20

622481R1

RING

filler

1шт.

21

542735R91

BOTTOM

ASSY, hopper

1шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

Выбрано товаров: 43
