Запчасти Case IH 386 (AF-18) - CORN, BEAN AND BEET PLANTING EQUIPMENT, INTERNATIONAL BOTTOM, QUANTITIES SHOWN ARE PER ROW

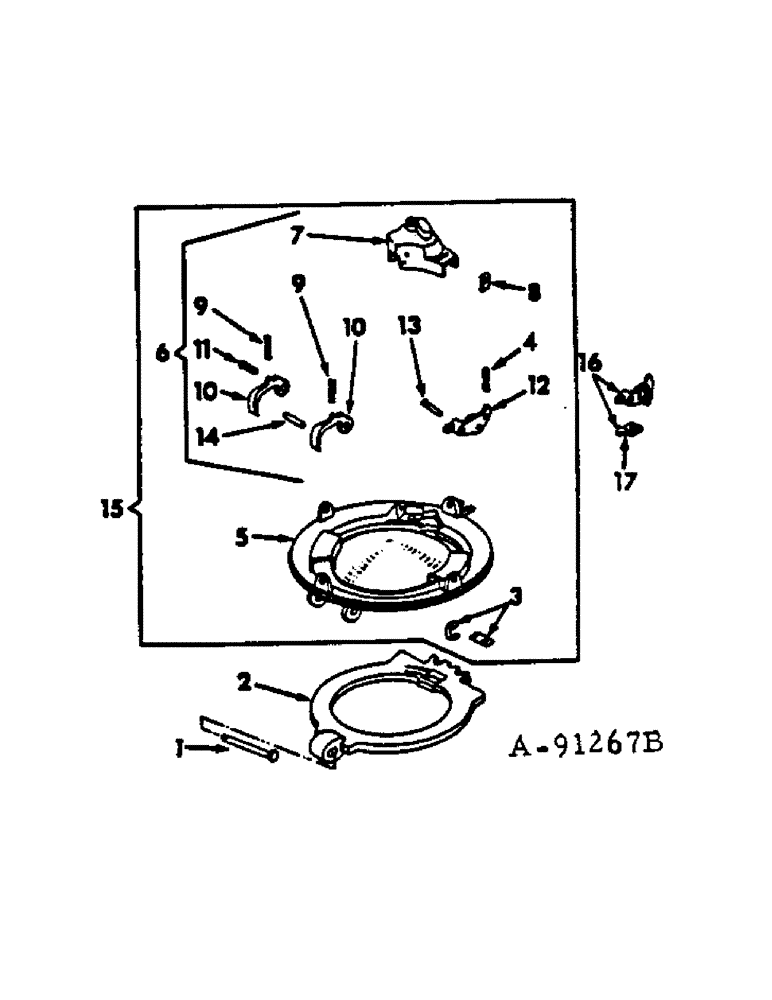

Схема запчастей Case IH 386 - (AF-18) - CORN, BEAN AND BEET PLANTING EQUIPMENT, INTERNATIONAL BOTTOM, QUANTITIES SHOWN ARE PER ROW
17
10
3
8
5
11
15
2
10
1
4
14
12
6
9
13
7
16
9

Артикул

Название

Примечание

Количество

1

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

484888R1

PLATE ASSY.

PLATE, reversible bottom corn

1шт.

2

484889R2

PLATE

reversible bottom beet

1шт.

3

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

1шт.

4

542320R1

SPRING

knocker pawl, for corn and beans

1шт.

4

484881R1

SPRING

knocker pawl, for beets

1шт.

5

BOTTOM, International hopper, for corn and beans, order bottom assy, 488790R91

1шт.

5

BOTTOM, International hopper, for beets, order bottom assy 488791R92

1шт.

6

484871R91

SERVICE KIT

double pawl corn

1шт.

6

484884R92

COVER

ASSY, double pawl beet

1шт.

7

COVER, double pawl, not serviced separately, order cover assy

1шт.

8

484879R1

DOOR

GATE, double pawl cover

1шт.

9

484881R1

SPRING

cut-off pawl

2шт.

10

484875R1

PAWL

corn cut-off

2шт.

10

484874R1

PAWL

beet cut-off

2шт.

11

484883R1

PIN

3/16 x 1 knurled head, cut-off pawl pivot

1шт.

12

484885R21

ARM

W/WASHERS AND SCREW, corn roller knocker

1шт.

12

484872R21

ARM

W/WASHERS AND SCREW, beet roller

1шт.

13

KNOCKER

1шт.

488808R1

SCREW

no. 10 x 1 C-Z slt-pan-hd tap

2шт.

131015

WASHER

3/16 x 7/16 x .038 C-Z

1шт.

376308R1

SPRING WASHER

1шт.

14

484882R1

PIN

3/16 x 1-1/2 knurled head, knocker arm pivot

1шт.

15

22433R1

PIN,3/16" x 1 5/16"

3/16 x 1-5/16 C-Z chamfered str, cut-off pawl stop

1шт.

16

488790R91

BOTTOM

ASSY W/HARDWARE, International hopper, for corn and beans

1шт.

16

488791R92

BOTTOM

ASSY, International hopper, for beets

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

1шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

5шт.

120376

NUT,5/16"-18, G5

1шт.

17

484878R12

ARM

ASSY, small seed knocker, special, used with either corn or beet planting International hopper bottom assemblies and seed plates with drilled holes

1шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

8-32 x 7/16 C-Z slt-pan-hd mach

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

120622

NUT,#8-32

1шт.

18

484880R2

STRIP

small seed knocker arm

1шт.

Выбрано товаров: 37
