Запчасти Case IH 386 (AF-17) - PEANUT PLANTING EQUIPMENT, ROTARY CONE BOTTOM, QUANTITIES SHOWN ARE PER ROW

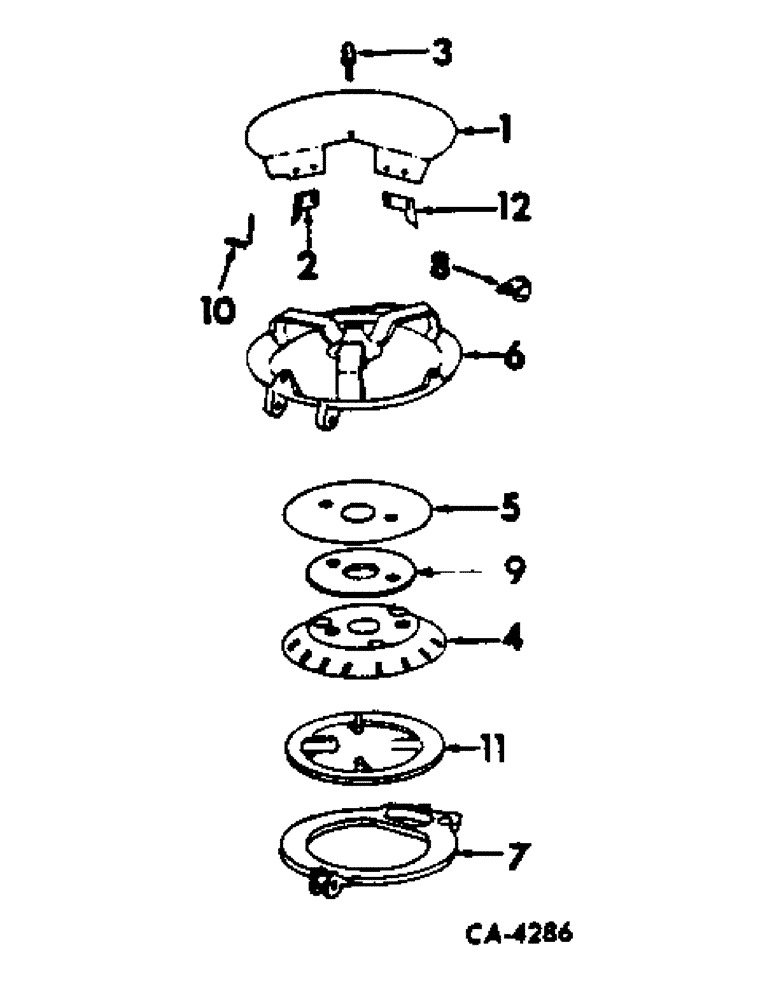

Схема запчастей Case IH 386 - (AF-17) - PEANUT PLANTING EQUIPMENT, ROTARY CONE BOTTOM, QUANTITIES SHOWN ARE PER ROW
12
8
7
2
1
10
4
5
11
6
3
9

Артикул

Название

Примечание

Количество

1

487064R2

BAFFLE

ASSY, peanut

1шт.

2

487066R1

REINFORCEMENT

peanut cut-off

1шт.

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

no. 8 x 3/8 znp p/hds mach

2шт.

3

377363R1

THUMB SCREW,1/4" x 3/4"

thumb

1шт.

4

487067R2

LARGE PLATE

PLATE, peanut seed

1шт.

5

487068R1

PLATE

ASSY, peanut baffle

1шт.

5

490621R1

PLATE

agitator

1шт.

6

58640C1

BOTTOM

rotary hopper

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

7

58639C1

PLATE

rotary cone bottom

1шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

1шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

8

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

1шт.

9

58619C1

SPACER

baffle plate

1шт.

10

490622R1

SPRING

seed cut-off

1шт.

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

no. 8 x 3/8 znp p/hds mach

1шт.

11

113161C2

PLATE

peanut seed filler

1шт.

12

490620R1

GUIDE

GATE, rotary cone bottom

1шт.

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

no. 8 x 3/8 znd p/hds mach

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

120622

NUT,#8-32

2шт.

Выбрано товаров: 26
