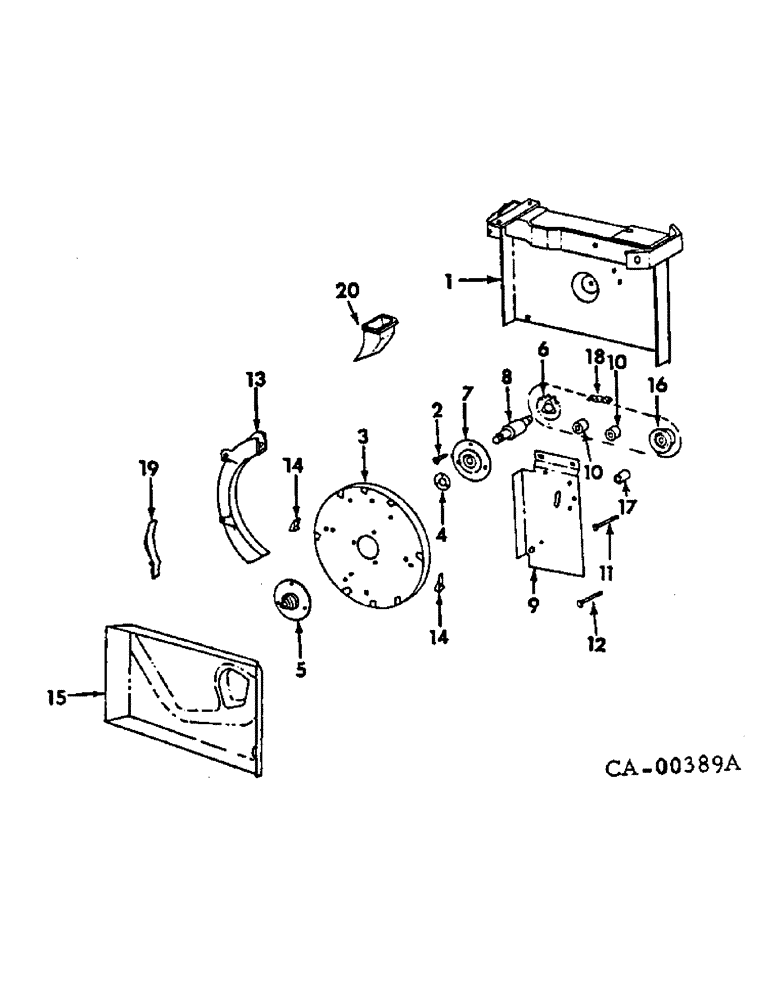

Запчасти Case IH 386 (AF-16) - HILL DROP UNIT, QUANTITIES SHOWN ARE PER PLANTER UNIT

1

492683R3

FRAME ASSY, seed unit

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

2

493743R1

SCREW

no. 8 x 1/2 C-Z self tap

3шт.

3

472129R3

WHEEL

plastic seed

1шт.

4

493741R1

WASHER

WASHER, bearing flange

1шт.

5

493742R1

FLANGE

seed bearing

1шт.

6

492691R1

SPROCKET ASSY.

SPROCKET, 12T

1шт.

7

493744R1

FLANGE

seed bearing

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 C-Z slt-pan-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

3шт.

8

492693R91

BEARING ASSY,0.6267" ID x 1.1811" OD x 4.55"

rotor

1шт.

425-117

NUT,7/16"-20, G5

7/16-20 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21755R1

WASHER

15/32 x 13/16 x 18 ga C-Z

1шт.

9

546982R1

CASE

RETAINER

1шт.

10

493323R1

SPACER

case retainer

2шт.

11

493322R1

PIN

long attaching

1шт.

21628R1

PIN

1/8 x 3/4 C-Z cot.

1шт.

12

493325R1

PIN

short locating

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

479129R92

VALVE SPRING

SPRING ASSY, seed retaining

1шт.

480994R1

RIVET, 3/16 x 1/2 anp csk-hd

4шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 11 ga C-Z

4шт.

14

468464R1

LUG

seed wheel plastic

4шт.

120619

NUT

10-24 C-Z sq.

8шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 C-Z slt flt-hd mach

4шт.

15

492698R2

COVER

side valve

1шт.

16

482635R2

ROLLER

chain tightener

1шт.

17

492700R1

SPACER

chain tightener

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znp sq-nk crg

1шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

18

CHAIN, rotor drive, use 51 links from 10 ft. roll marked, 489466R91 and one connecting link, 489467R1

1шт.

19

489471R1

GUIDE

drill

1шт.

21916R1

PIN

1/4 x 2 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

20

492647R1

TUBE

hill drop seed

1шт.

374539R1

FLUID

SEALANT, loctite

1шт.
