Запчасти Case IH 386 (AF-14) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER, QUANTITIES SHOWN ARE PER ROW

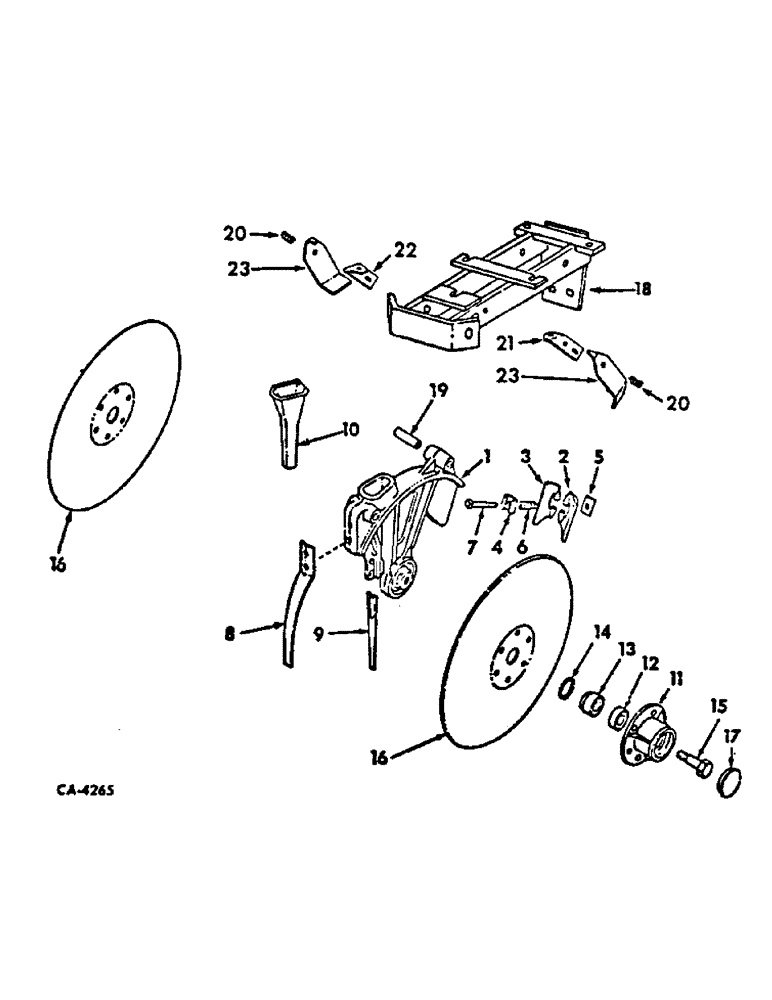

Схема запчастей Case IH 386 - (AF-14) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER, QUANTITIES SHOWN ARE PER ROW
9
8
2
17
1
22
16
10
12
14
18
15
23
20
19
21
4
11
13
23
16
20
7
6
3
5

Артикул

Название

Примечание

Количество

1

484083R21

BOOT

ASSY, double disk opener

1шт.

2

N2567

LARGE PLATE

SCRAPER, inside LH

1шт.

3

N2568

SCRAPER

inside RH

1шт.

4

N62537

HINGE

inside scraper

1шт.

5

N62538

KNIFE ASSY

SPREADER, inside scraper

1шт.

6

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

7

620723R1

BOLT

inside scraper to boot 5/16-24 x 2-1/2 sq-hd mach

1шт.

274312

SHAFT

NUT, 5/16-24 cdp self-locking hex

1шт.

8

522305R1

GUARD

weed

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

522306R1

DEFLECTOR

seed

1шт.

120373

NUT, 5/16-18 C-Z sq

1шт.

10

541875R1

TUBE

stubble mulch

1шт.

11

524053R1

HUB

HOUSING, bearing

2шт.

12

ST620

BALL BEARING,17 mm ID x 40 mm OD x 18.2549 mm

BEARING, disk inner ball, pre-lubricated

2шт.

13

ST262

BALL BEARING,17mm ID x 40mm OD x 12mm W

BEARING, disk outer ball, pre-lubricated

3шт.

14

524061R1

SPACER

bearing

2шт.

15

524039R1

BOLT,Hex, 5/8" - 11 x 2", LH Thd

spindle LH thread

1шт.

15

524040R1

BOLT,5/8" - 11 x 2", RH Thd

spindle RH thread, disk bearing/bolt

1шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

2шт.

16

523951R1

DISC

BLADE, disk, 13-7/8 in.

2шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

12шт.

17

522021R1

CAP

bearing

2шт.

18

541870R4

FRAME

ASSY, unit

1шт.

19

546983R1

BUSHING

stub mulcher bracket

2шт.

18829R1

BOLT

5/8 x 4-1/2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

2шт.

20

6633

SPRING

2шт.

21

484092R1

SUPPORT

BRACE, scraper LH

1шт.

22

484093R1

BRACE

scraper RH

1шт.

23

464475R1

SUPPORT

SCRAPER, outside

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z hex-hd mach

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 C-Z ESNA stop

2шт.
