Запчасти Case IH 386 (AF-12[A]) - DISK FURROWING ATTACHMENT, 12 IN., QUANTITIES SHOWN ARE PER ROW

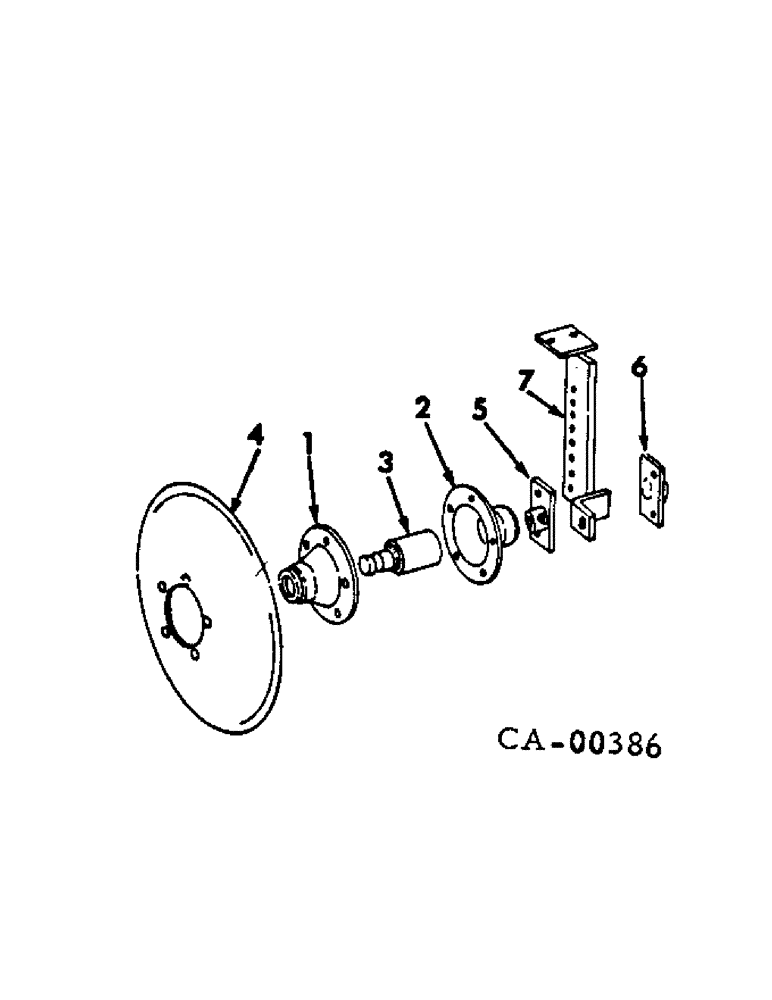

Схема запчастей Case IH 386 - (AF-12[A]) - DISK FURROWING ATTACHMENT, 12 IN., QUANTITIES SHOWN ARE PER ROW
7
1
3
4
5
2
6

Артикул

Название

Примечание

Количество

1

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, bearing inner

2шт.

2

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

bearing outer

2шт.

3

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

2шт.

4

479848R1

DISC

DISK, 12 in. diameter

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

5

125844C1

BRACKET

furrow disk LH, replaces 472248R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

125845C1

BRACKET

furrow disk RH, replaces 472249R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

492715R1

BRACKET

ASSY, disk mounting

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 21
