Запчасти Case IH 386 (AF-11) - PRESS WHEELS AND TIRES, QUANTITIES SHOWN ARE PER ROW

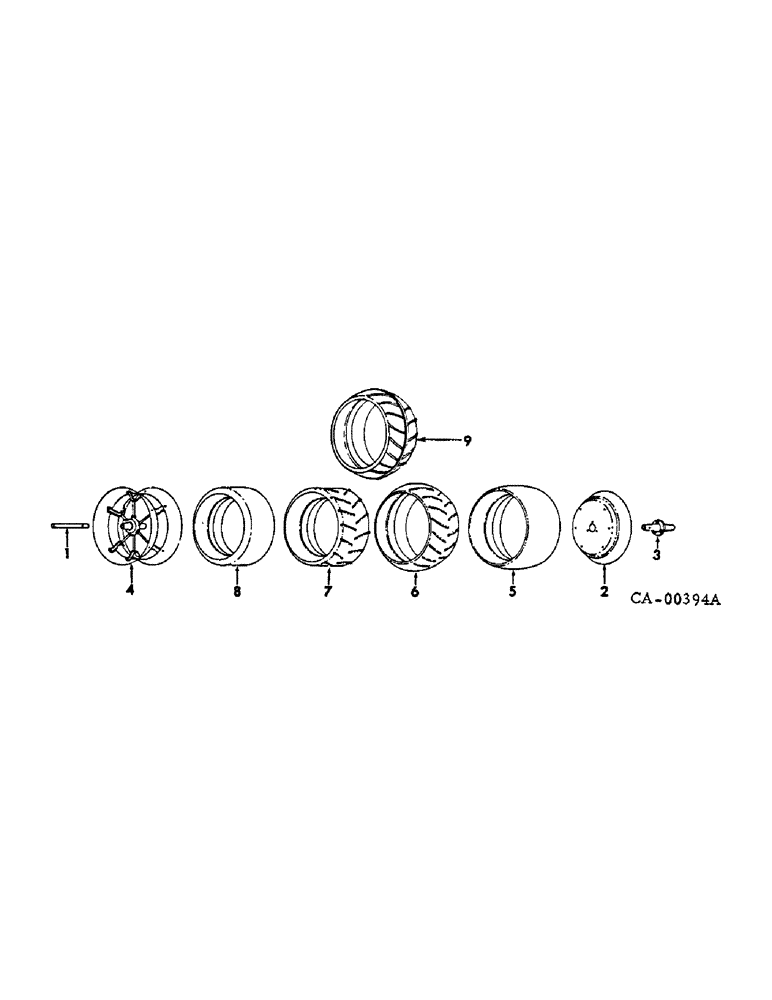

Схема запчастей Case IH 386 - (AF-11) - PRESS WHEELS AND TIRES, QUANTITIES SHOWN ARE PER ROW
6
3
9
7
1
5
4
8
2

Артикул

Название

Примечание

Количество

1

492730R1

TUBE

BUSHING, wheel, for 8 x 20 in. press wheel

1шт.

2

483327R1

WHEEL

DISK, 7 x 8 in. press wheel half

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-20 x 5/8 znd hex-hd mach

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

3

492731R1

HUB

WHEEL, for 7 x 18 in. tires

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

3

113012C1

HUB

wheel, for 8 x 20 in. tires

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive type lub

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

113009C1

RIM

WHEEL ASSY, 8 x 20 in. press wheel, replaces 471246R91 by also ordering hub, 113012C1, fitting, 273355, four screws, 180124, four washers, 120382 and four nuts, 120377

1шт.

5

622855R1

TYRE/TIRE

TIRE, 8 x 20 in. smooth crowned semi-pneumatic rubber

1шт.

5

492733R1

TYRE/TIRE

TIRE, 7 x 18 in. smooth crowned semi-pneumatic rubber

1шт.

6

477312R1

TYRE/TIRE

TIRE, 8 x 20 in. crowned traction tread semi-pneumatic rubber

1шт.

6

549164R1

TYRE/TIRE

TIRE, 7 x 18 in. crowned traction tread semi-pneumatic rubber

1шт.

7

483326R1

TYRE/TIRE

TIRE, 7 x 18 in. concave traction tread semi-pneumatic rubber

1шт.

8

492732R1

TYRE/TIRE

TIRE, 7 x 18 in. smooth concave semi-pneumatic rubber

1шт.

9

542241R1

TYRE/TIRE

TIRE, 7 x 18 in. semi-pneumatic dual R18 traction tread

1шт.

Выбрано товаров: 21
