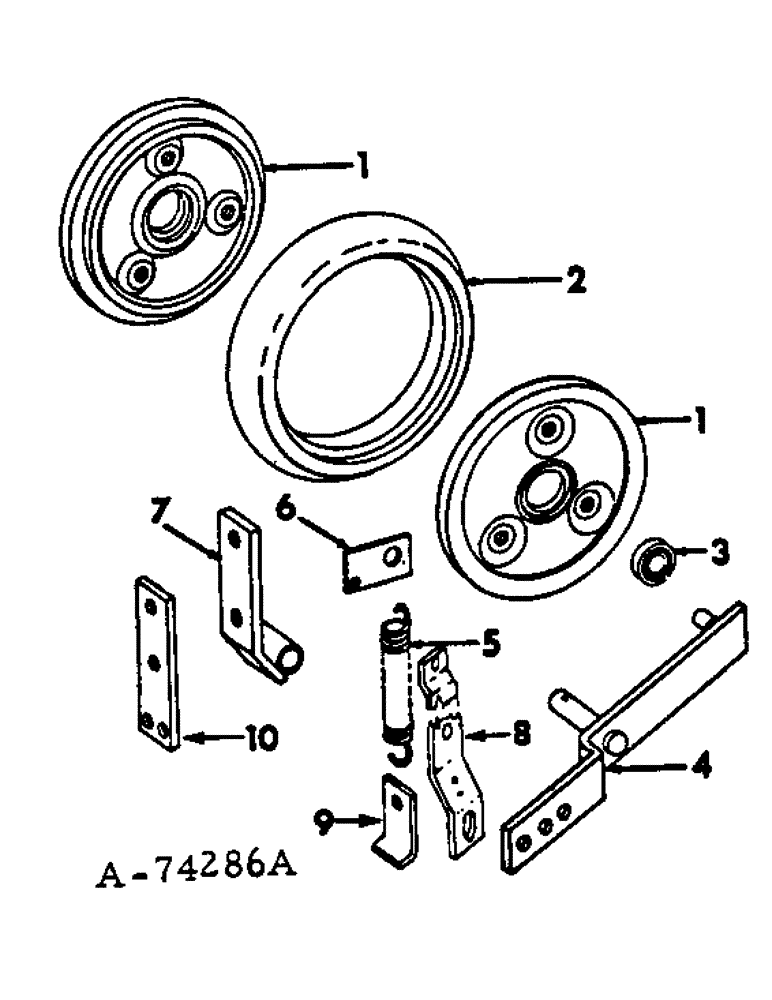

Запчасти Case IH 386 (AF-08) - SEED FIRMING WHEEL, QUANTITIES SHOWN ARE PER ROW

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

1шт.

3

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

4

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.

178373R1

WASHER

.531 x 1 x .056 znd, 2 used w/stubble mulch planter

1шт.

22245R1

WASHER, 17/32 x 1 x 7 ga znd, used with stubble mulch planter

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga znd, used with stubble mulch planter

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

21634R1

PIN, 1/4 x 1 C-Z self-opening cot.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

1шт.

446354

WASHER,1/4"

5/16 x 7/8 x 16 ga C-Z

1шт.

5

622016R1

SPRING

extension

1шт.

6

471217R1

CLIP

spring

1шт.

7

471218R11

SUPPORT

ASSY, wheel pivot

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

8

Not used in this application

1шт.

9

Not used in this application

1шт.

10

541891R1

BAR

PLATE, attaching, drill unit

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
