Запчасти Case IH 386 (AF-07) - PRESSURE SPRING ATTACHMENT, PLANTER UNIT, QUANTITIES SHOWN ARE PER PLANTER UNIT

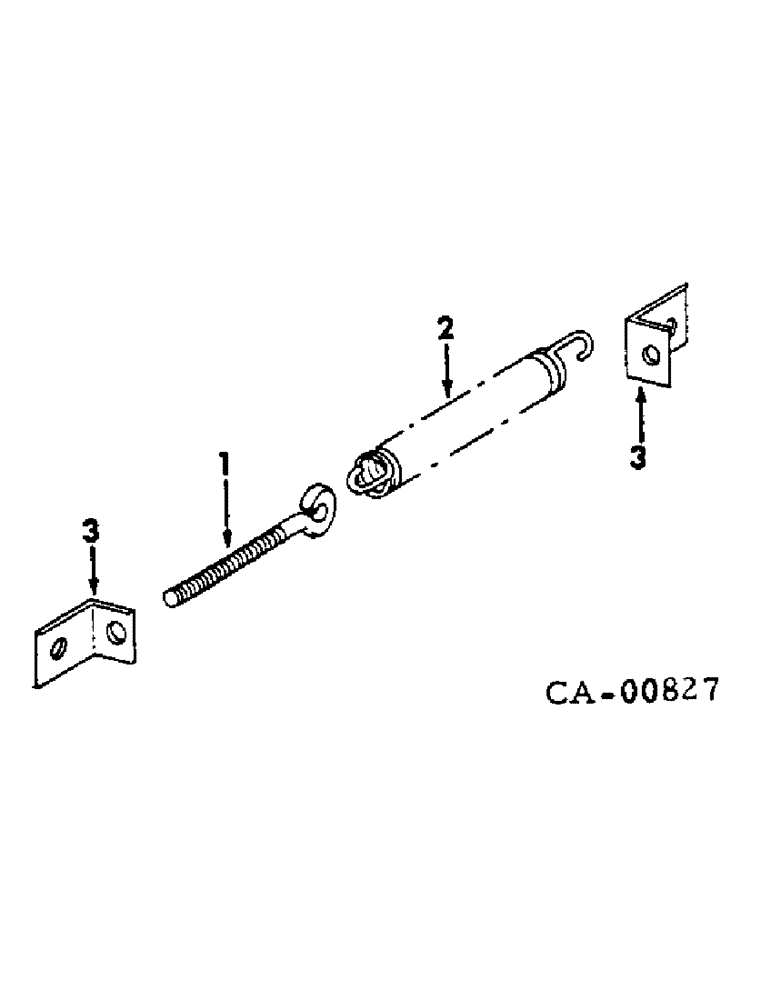

Схема запчастей Case IH 386 - (AF-07) - PRESSURE SPRING ATTACHMENT, PLANTER UNIT, QUANTITIES SHOWN ARE PER PLANTER UNIT
1
3
3
2

Артикул

Название

Примечание

Количество

1

510027R1

SPRING

trip lever

2шт.

2

542858R1

U-BOLT

EYEBOLT

2шт.

3

542857R1

BRACKET

spring anchor

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

Выбрано товаров: 7
