Запчасти Case IH 386 (AF-07[A]) - DEPTH BAND DRUM AND SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER PLANTER UNIT

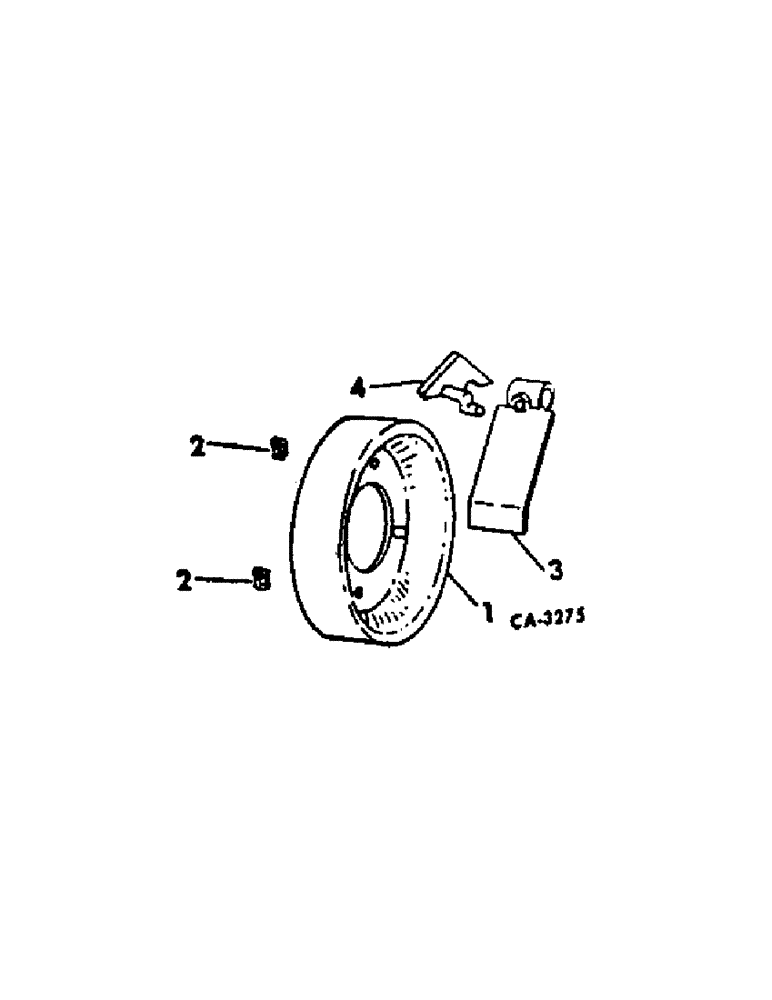

Схема запчастей Case IH 386 - (AF-07[A]) - DEPTH BAND DRUM AND SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER PLANTER UNIT
4
2
3
1
2

Артикул

Название

Примечание

Количество

1

493539R1

DRUM

depth 9-1/2 in. OD, for 1-3/4 in. depth

2шт.

1

493540R2

DRUM

depth 10-1/2 in. OD for 1-1/4 in. depth

2шт.

1

542555R2

DRUM

depth 11 in. OD, for 1 in. depth

2шт.

1

524670R1

DRUM

depth 9-7/8 in OD, for 1 in. depth

2шт.

1

524671R1

DRUM

depth 8-3/8 in. OD, for 1-3/4 in. depth

2шт.

492752R1

BOLT,Carriage, 3/8" - 16 x 1 1/4"

special crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

492751R1

WASHER

disk

4шт.

3

492761R1

BLADE

ASSY, depth band LH

1шт.

3

492762R1

BLADE

ASSY, depth band RH

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

Not used in this application

1шт.

Выбрано товаров: 14
