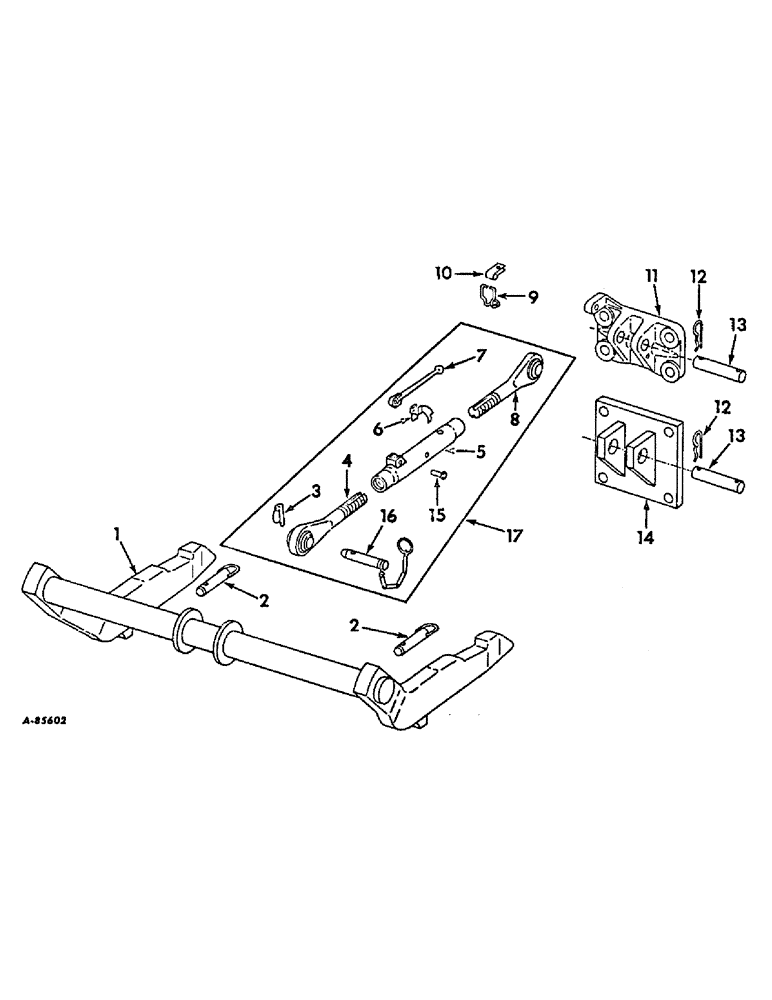

Запчасти Case IH 326 (AB-05) - TWO-POINT FAST HITCH, FOR FARMALL AND INTERNATIONAL 706, 806 AND FARMALL 1206 TRACTORS

1

483567R91

BEAM

ASSY, coupling

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

2

517853R21

PIN

ASSY, ball

2шт.

3

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

4

386048R91

LINK

SCREW ASSY, LH thread

1шт.

5

400908R1

TURNBUCKLE

upper link

1шт.

6

(Not used in this application)

1шт.

7

392204R1

HANDLE

upper link turnbuckle

1шт.

8

386049R91

LINK

SCREW ASSY, RH thread

1шт.

9

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

10

378404R1

FASTENER

CLIP

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

1шт.

11

389372R21

BRACKET

ASSY, upper link, for 656 tractors

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

12

520175R1

CLIP

PIN, quick attachable cot.

1шт.

13

473171R1

PIN

for 706 and 806 tractors

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

13

481985R1

PIN, upper link, for 656 tractors

1шт.

14

473168R91

BRACKET

ASSY, for 706 and 806 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

16

380563R91

PIN

ASSY, upper link implement

1шт.

17

400907R92

LINK

ASSY, upper

1шт.
