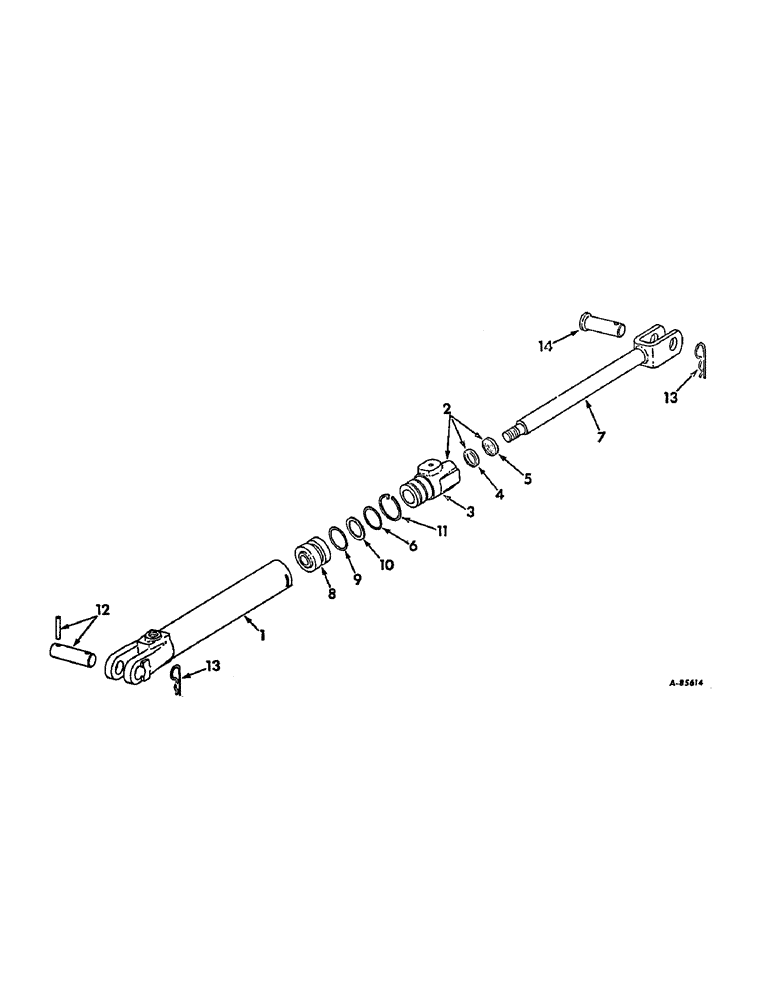

Запчасти Case IH 326 (AB-10) - SINGLE-ACTION HYDRAULIC CYLINDER, 2 IN. DIAMETER, 8 IN. STROKE

381832R91

CYLINDER

ASSY, hydraulic

1шт.

1

381820R91

TUBE ASSY, cylinder

1шт.

2

381802R11

HEAD ASSY, rod end

1шт.

3

381802R1

HEAD, rod end

1шт.

4

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

5

354049R1

RETAINER

piston rod dust seal

1шт.

6

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1-1/8

1шт.

7

381842R91

ROD

ASSY, piston

1шт.

385020R1

NUT

3/4-16 hex. lock

1шт.

8

381848R1

PISTON

HEAD, piston

1шт.

9

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16

1шт.

10

381850R1

WASHER

piston head backup

1шт.

11

461180R1

RETAINER

RING, retaining

1шт.

12

381852R11

PIN

ASSY, cylinder pivot

1шт.

13

520175R1

CLIP

PIN, quick attachable cot.

2шт.

14

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 headed

1шт.

381832R91

CYLINDER

ASSEMBLY, hydraulic, for component parts refer to details under single-action on hydraulic cylinder, 2 in. x 8 in.

1шт.

540004R1

HOSE ASSY, 1/2 ID x 155 in. long, for 6-row

2шт.

540005R1

HOSE

HSOE ASSY, 1/2 ID x 190 in. long, for 8 row

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

6шт.

395149R1

QUICK MALE COUPLING

COUPLING, 7/8-14 str self-sealing male

2шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel 5/8 OD tube

1шт.

493960R91

VALVE

ASSY, drop retarding, for hydraulic marker

2шт.

493961R1

WASHER

valve, for hydraulic marker

2шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 std x 1-1/4 taper, for hydraulic marker

2шт.
