Запчасти Case IH 326 (AB-07) - TOOL BAR CARRYING WHEELS

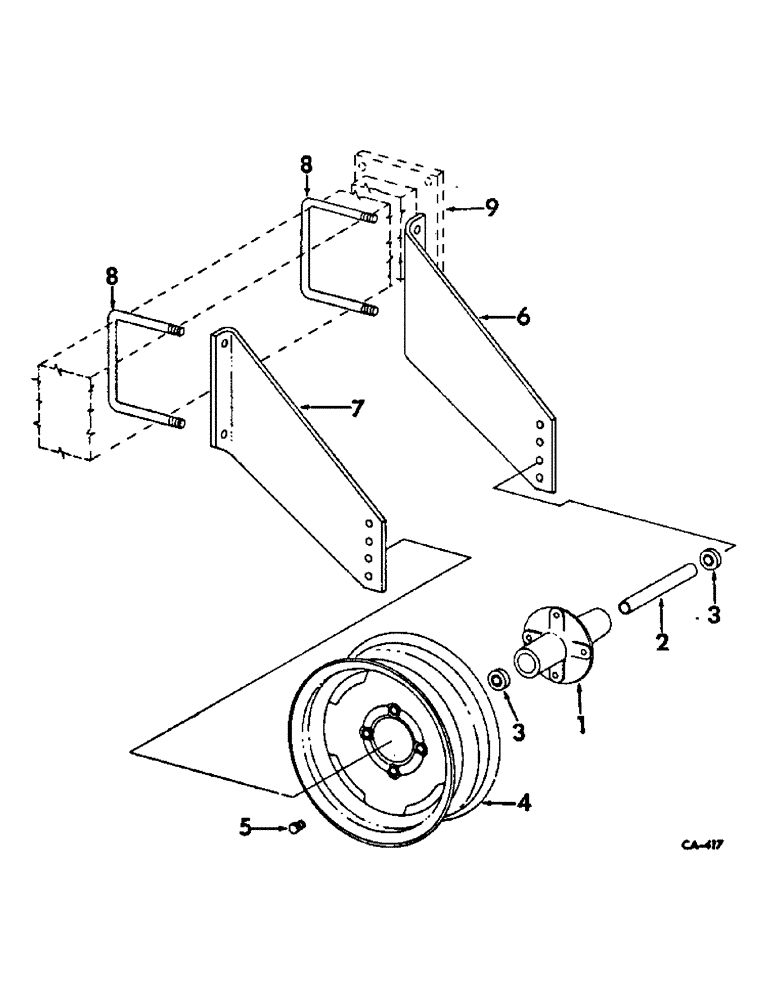

Схема запчастей Case IH 326 - (AB-07) - TOOL BAR CARRYING WHEELS
8
1
3
2
4
7
6
8
3
5
9

Артикул

Название

Примечание

Количество

1

465418R1

HUB

wheel

2шт.

2

465423R1

PIPE

SPACER, pipe

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

roller

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

21144R1

BOLT, 5/8 x 12 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

2шт.

6

493935R1

ARM, wheel LH

2шт.

7

493936R1

ARM

wheel RH

2шт.

8

492942R1

BOLT

U-BOLT, wheel arm

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

9

TUBE ASSY, main frame, refer to tool bar frame unit

1шт.

Выбрано товаров: 13
