(AG-06) - QUICK ATTACHABLE HITCH, 3-POINT CAT. II & III, FOR FARMALL & INTERNATIONAL 706, 806 & 1206 TRACTORS

Запчасти Case IH 300 (AG-06) - QUICK ATTACHABLE HITCH, 3-POINT CAT. II & III, FOR FARMALL & INTERNATIONAL 706, 806 & 1206 TRACTORS

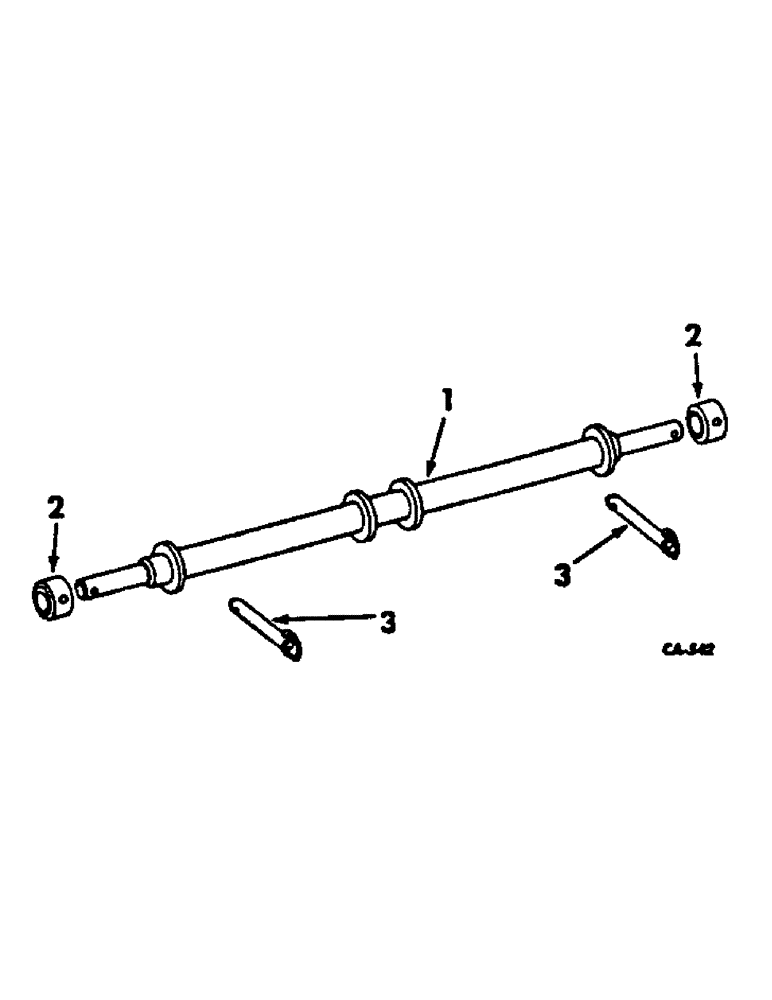

Схема запчастей Case IH 300 - (AG-06) - QUICK ATTACHABLE HITCH, 3-POINT CAT. II & III, FOR FARMALL & INTERNATIONAL 706, 806 & 1206 TRACTORS
2
3
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

483572R92

SPINDLE

ASSY, cat. II

1шт.

1

57233C1

SPINDLE

ASSY, cat. III

1шт.

2

401233R1

COLLAR

thrust

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

3

113225C1

PIN

ASSY, ball

2шт.

373025R91

PIN ASSY.

PIN, quick attachable cot.

2шт.
