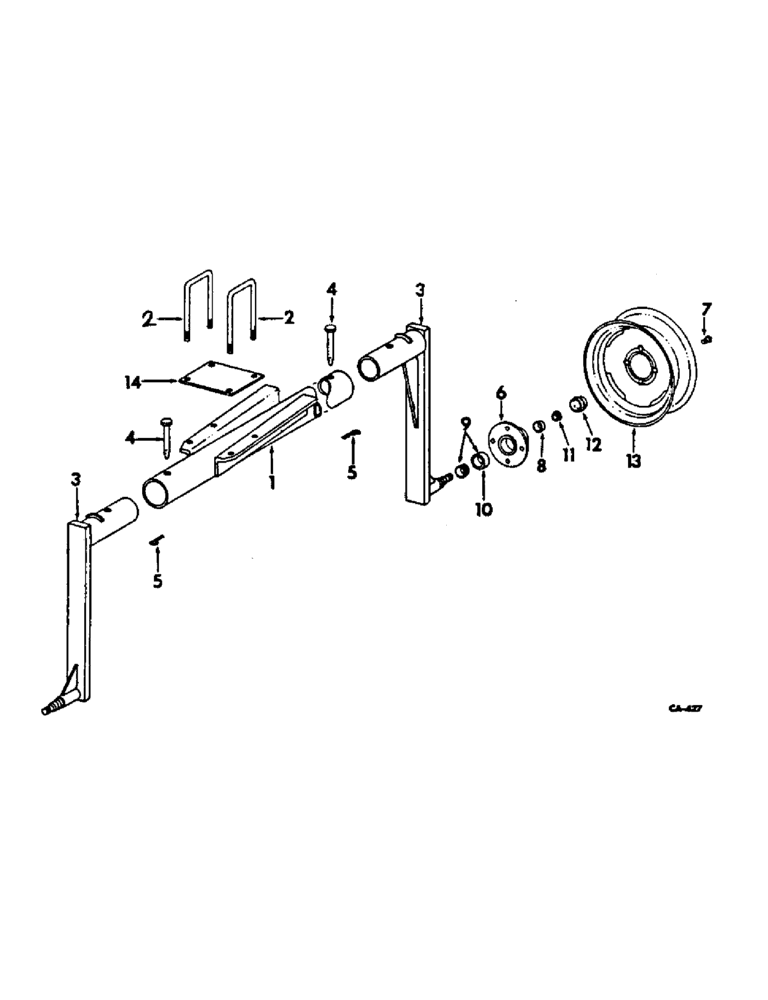

Запчасти Case IH 300 (AG-04) - TRANSPORT ATTACHMENT

1

493979R1

TUBE ASSY, transport

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT

2шт.

389372R41

BRACKET

NUT, 7/8-9 C-Z hex.

4шт.

3

493983R1

AXLE ASSY, wheel

2шт.

4

486220R1

PIN

transport tube pointed

2шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

6

472220R21

HUB

W/SET SCREW, wheel

2шт.

382210R11

PIN

SCREW, 1/4-28 x 1/4 C-Z stl ov-pt hdls set

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z cot.

1шт.

7

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd wheel

8шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

2шт.

69442D

NUT

slt-hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

8

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 C-Z std hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

10

651817R1

BEARING CUP

BEARING, inner cup

2шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

11

651814R1

BEARING CUP

BEARING, outer cup

2шт.

12

651194R1

CAP

wheel brg hub

2шт.

13

463036R1

WHEEL (STEERING)

WHEEL, 14 in. standard, recommended tire size 8.50 x 14, 8.00 x 14, 7.50 x 14 or 7.00 x 14

2шт.

14

493840R1

PLATE

reinforcing, 5 x 7

1шт.

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

472222R1

SLEEVE

oil seal wear

2шт.
