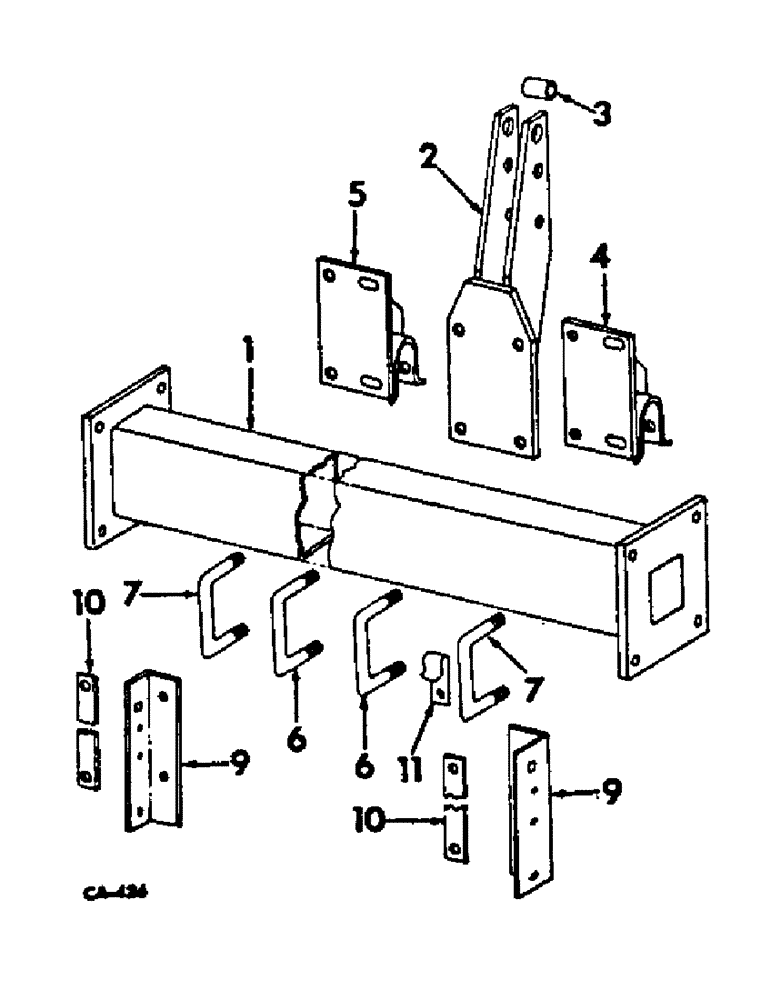

Запчасти Case IH 300 (AG-03) - TOOL BAR FRAME

1

493963R2

TUBE ASSY, main frame 307 in., for units B, E, M through O

1шт.

2

493966R2

TUBE ASSY, main frame 238 in., for units A, C, D, F through L

1шт.

3

493968R1

MAST ASSY

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

462425R1

SPACER

mast

1шт.

5

493971R2

BRACKET ASSY, hitch LH

1шт.

6

493972R2

BRACKET ASSY, hitch RH

1шт.

7

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, mast 7/8 in.

2шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 4 znd hex.

4шт.

8

493975R1

BOLT

U-BOLT, hitch bracket

2шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 4 znd hex.

4шт.

9

493978R1

ANGLE, head bracket RH

1шт.

10

493976R1

STRAP, angle

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 znd hex-hd cap

4шт.

23245R1

WASHER

25/32 x 1-1/2 x 7 ga znd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

11

436962R1

CLAMP, hyd hose

4шт.
