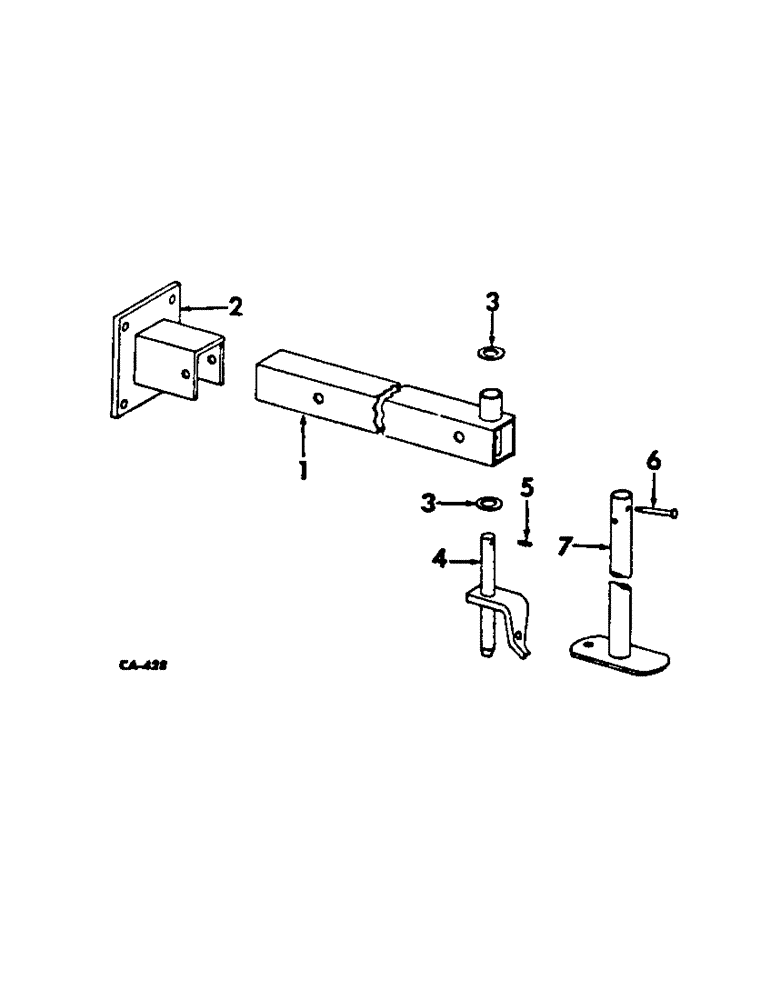

Запчасти Case IH 300 (AG-12) - TOW BAR AND PARKING STAND

1

493985R1

TUBE

ASSY, hitch

1шт.

2

493987R2

PLATE

ASSY, transport

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

483587R1

WASHER

pivot

2шт.

4

493991R1

BRACKET

ASSY, hitch pivot

1шт.

21642R1

PIN, 5/16 x 2-1/2 C-Z self-opening cot.

1шт.

5

66584D

FITTING

3/16 drive type str lub, in transport tongue

1шт.

6

493990R2

PIN

pointed

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

7

493994R1

STAND

ASSY, support

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.
