Запчасти Case IH 300 (AG-11) - HYDRAULIC MARKER CYLINDER, FOR PLANTERS W/HYDRAULIC MARKER

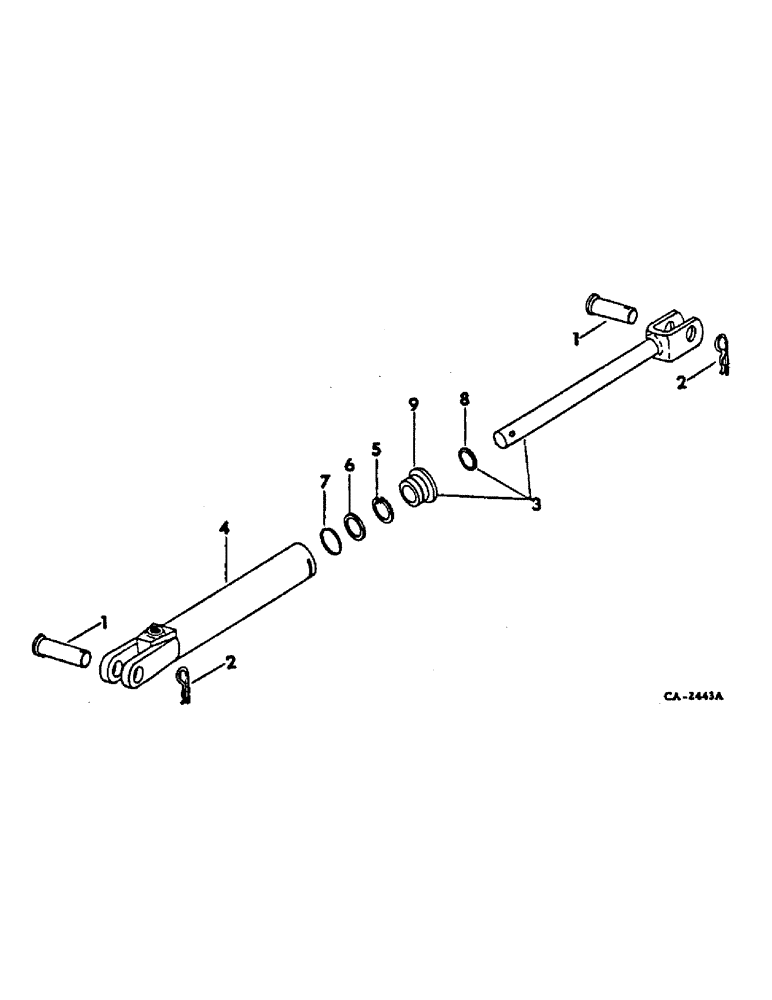

Схема запчастей Case IH 300 - (AG-11) - HYDRAULIC MARKER CYLINDER, FOR PLANTERS W/HYDRAULIC MARKER
8
1
2
2
3
5
9
4
7
1
6

Артикул

Название

Примечание

Количество

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic

1шт.

1

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd, not included in cylinder assy

2шт.

2

520175R1

CLIP

PIN, 3/16 x 1-1/8 quick attachable cot., not included in cylinder assy

2шт.

3

64602C91

PISTON

ASSY, cylinder, includes ref nos 8 and 9, replaces 57677C91

1шт.

4

548242R1

TUBE

BODY ASSY, cylinder

1шт.

5

RING, retaining, not serviced separately, order package, 461181R91

1шт.

6

WASHER, back-up, not serviced separately, order package, 461181R91

1шт.

7

O-RING, 1-5/8 x 2 x 3/16, piston, not serviced separately, order package, 461181R91

1шт.

8

57679C1

SEAL

WIPER, rod

1шт.

9

57678C1

END ASSY.

END, cylinder

1шт.

461181R91

SEAL

PACKAGE, hyd cylinder O-ring service, consists of ref nos. 5, 6 and 7

1шт.

Выбрано товаров: 11
