Запчасти Case IH 300 (AG-09) - MARKER ATTACHMENT, REQUIRES HYD. COMPLETING PACKAGE

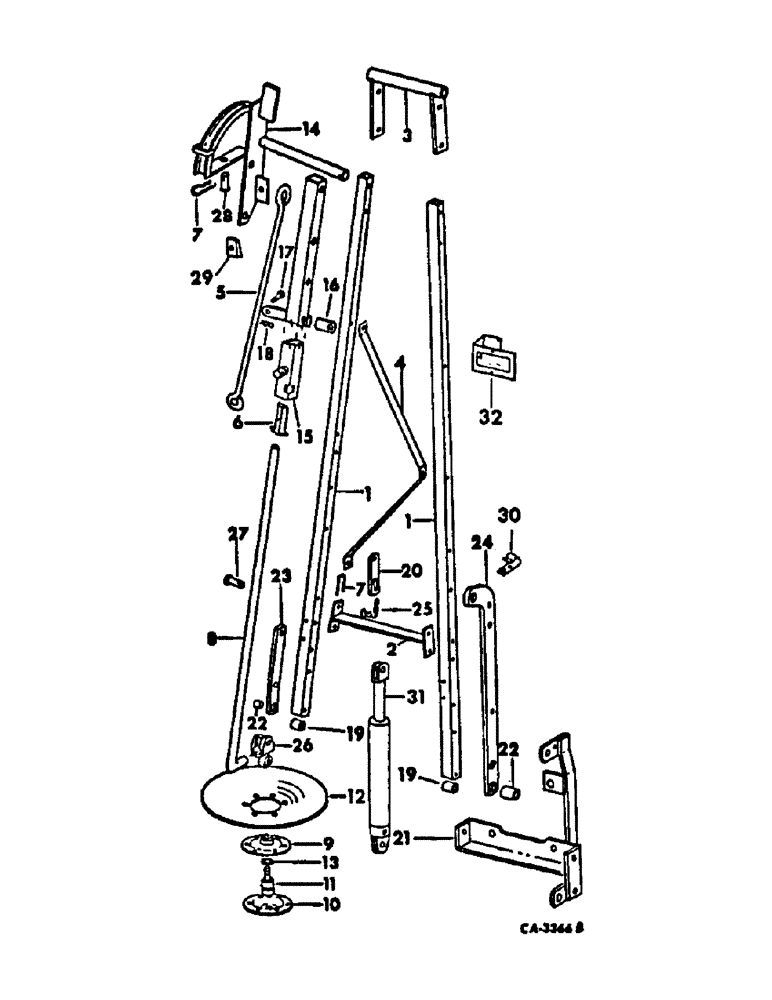

Схема запчастей Case IH 300 - (AG-09) - MARKER ATTACHMENT, REQUIRES HYD. COMPLETING PACKAGE
27
26
17
14
1
9
16
22
22
18
12
25
19
28
2
13
29
1
21
15
4
7
20
3
1
1
19
6
24
30
23
7
5
31
8
32

Артикул

Название

Примечание

Количество

1

489754R3

TUBE

marker, units B, E, M through Q w/28 and 40 in. rows

4шт.

1

493944R2

TUBE

marker, units A, C, D, F through L

4шт.

1

58296C1

TUBE,76.8" Length

marker, units B, E, M through Q w/36 in. rows

4шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

6шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

2

493946R1

BRACKET

ASSY, tube, units B, E, M through Q

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

489758R1

TUBE

PIPE ASSY

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg, 8 for units B, E, M through Q w/38 and 40 in. rows

6шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 znd sq-nk crg, units A, C, D, F through L and units B, E, M through Q w/36 in.

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

489761R1

SUPPORT

BRACE, frame, units B, E, M through Q w/38 and 40 in. rows

2шт.

4

493945R1

BRACE

frame, units A, C, D, F through L and B, E, M through Q w/36 in. rows

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-13 x 2-1/2 znd hex-hd cap, 13 for units B, E, M through Q w/38 and 40 in. rows

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per screw 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per screw 3/8"-16, G5

1шт.

5

493951R1

ROD

marker brace, units A, C, D, F through L

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

5

58280C1

ROD, truss, units B, E, M through Q

2шт.

6

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 znp sq-hd cup-pt set

2шт.

7

520175R1

CLIP

PIN, quick attachable cot.

10шт.

8

544273R1

ROD

marker disk clamp, units B, E, M through Q w/36 in. rows

2шт.

8

548747R1

ROD

marker disk clamp, units A, C, D, F through L, units B, E, M through Q w/38 and 40 in. rows

2шт.

9

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk furrow brg inner

2шт.

10

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk furrow brg outer

2шт.

11

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

12

469372R1

DISC,13"

DISK, 13 in. dia.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

13

480679R1

WASHER

dirt seal felt

2шт.

14

489774R2

PULLEY

ASSY, LH

1шт.

14

489775R2

PULLEY

ASSY, RH

1шт.

20328

PIN, 1/4 x 1-1/2 C-Z cot.

2шт.

51200055

HYDRAULIC HOSE,0.38" ID x 394.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

WASHER, 29/32 x 1-1/2 x 16 ga C-Z

6шт.

15

58297C1

TUBE ASSY, right, units B, E, M through Q w/36 in. rows 37.5" Length

1шт.

15

58669C1

TUBE ASSY, left, units B, E, M through Q w/36 in. rows 37.5" Length

1шт.

15

58302C1

TUBE ASSY, marker, units A, C, D, F through L 22" Length

2шт.

15

57647C1

TUBE

ASSY, marker, units B, E, M through Q w/38 and 40 in. rows

2шт.

16

489787R1

LINK, units B, E, M through Q

2шт.

17

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, , Units B, E, M through Q 3/8" x 2"

4шт.

18

586591R1

COTTER PIN

PIN, quick attachable cot., units B, E, M through Q

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

19

495137R1

SPACER

BUSHING, tube

10шт.

20

548076R1

LINK

BRACKET, outer end pivot

2шт.

21341R1

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1 znd std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

1шт.

21

58194C1

ANGLE

PIVOT ASSY, marker LH

1шт.

21

58195C1

ANGLE

PIVOT ASSY, marker RH

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

3шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

22

493982R1

BUSHING

marker pivot

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

23

548077R1

ARM

marker pivot

2шт.

24

548078R2

ARM

marker lift LH

1шт.

24

548079R2

ARM

marker lift RH

1шт.

19077R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 no. 3 repair head plow

2шт.

25

58142C1

CHAIN, actuator, units B, E, M through Q w/36 in. rows

1шт.

25

489767R92

CHAIN (AG)

CHAIN, actuator, units B, E, M through Q w/38 and 40 in. rows

2шт.

25

493952R1

CHAIN (AG)

CHAIN, actuator, units A, C, D, F through L

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

2шт.

200

RETAINING WIRE

1шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

2шт.

480891R1

NUT

1/4-20 znp flange lock

2шт.

26

478032R1

CLAMP

axle

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

27

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN, 1/2 x 3-7/16 C-Z std-hd

2шт.

28

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

29

493959R1

BLOCK

STOP, marker frame, units A, C, D, F through L, units B, E, M through Q w/36 in. rows

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

30

493962R2

CLAMP, hyd hose, units A, C, D, F through L, units B, E, M through Q w/38 and 40 in. rows

4шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

4шт.

31

548207R92

CYLINDER

ASSY, hyd 2 x 8, single action, for components, see list of parts under details of hydraulic marker cylinder

1шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd

4шт.

32

113118C91

BRACKET W/PRODUCT GRAPHIC, 113116C1

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 znd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.
