Запчасти Case IH 300 (AG-08) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT

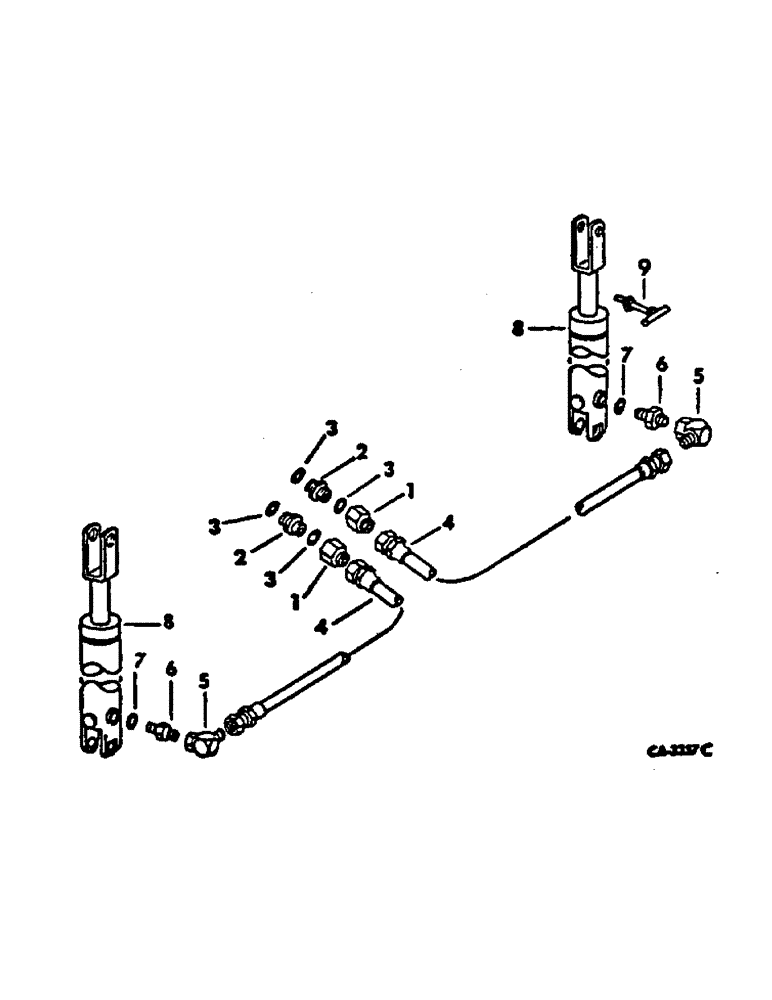

Схема запчастей Case IH 300 - (AG-08) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT
4
8
9
2
7
7
2
3
4
3
8
6
3
1
5
6
5
3
1

Артикул

Название

Примечание

Количество

1

493960R91

VALVE

ASSY, drop retarding

2шт.

546844R1

WASHER

valve

2шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 x 1-1/4 taper

2шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 deg hyd flared short swivel tube

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

4

58140C1

HOSE ASSY.

HOSE, L-160 in., units A, C, D, F through L

2шт.

4

58022C1

HOSE, L-195 in., units B, E, M through Q

2шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg hyd flared tube 90 deg

2шт.

6

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 37 deg flared tube

2шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

8

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, for components, see list of parts under details of hydraulic marker cylinder

1шт.

9

543261R1

SCREW

ASSY, cylinder thumb

1шт.

Выбрано товаров: 12
