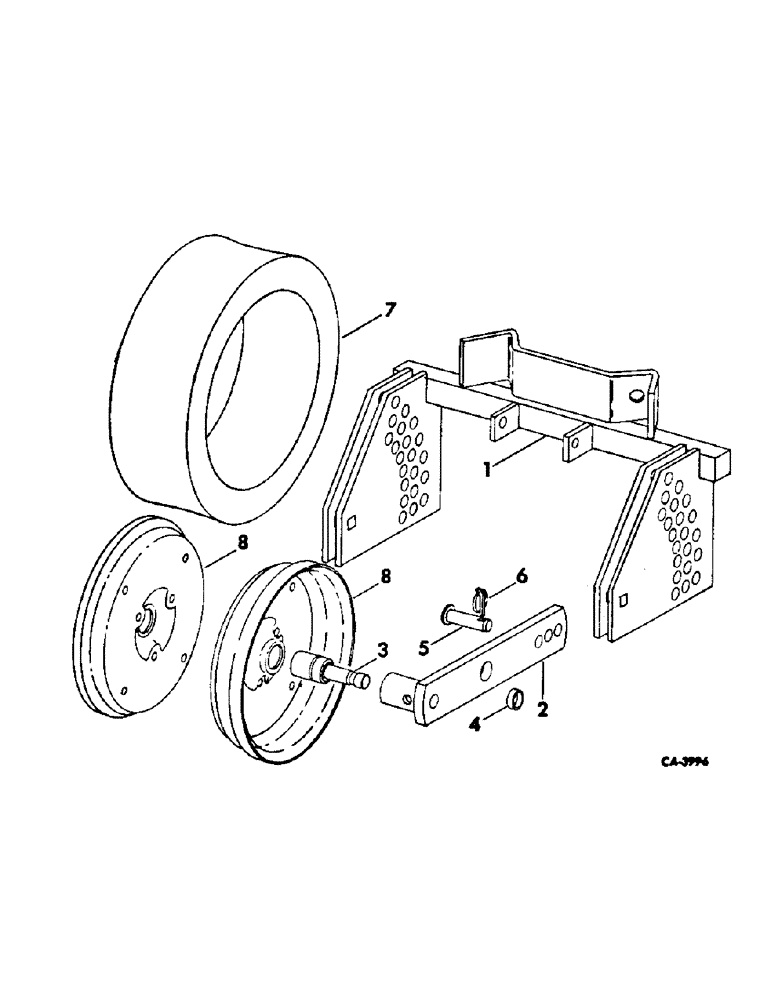

Запчасти Case IH 296 (AA-25) - GAUGE WHEEL

1

60657C1

FRAME

ASSY

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

3/8 x 1-1/8 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

60662C1

ARM

ASSY

2шт.

222503

PRESSURE PIPE

SCREW, 3/8 x 7/16 hex-soc-hd-f-pt set

2шт.

3

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING, ball

2шт.

4

297938

SPACER, arm pivot

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

60664C1

PIN

adjusting

2шт.

6

479696R91

AXLE PIN

PIN, klick

2шт.

7

516492R1

TYRE/TIRE

TIRE, zero pressure 4 x 12

2шт.

8

526768R1

WHEEL

RIM, gauge wheel 4 x 12

4шт.

180015

SCREW, 5/16-18 x 5/8 znd hex-hd cap

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120376

NUT,5/16"-18, G5

7шт.
