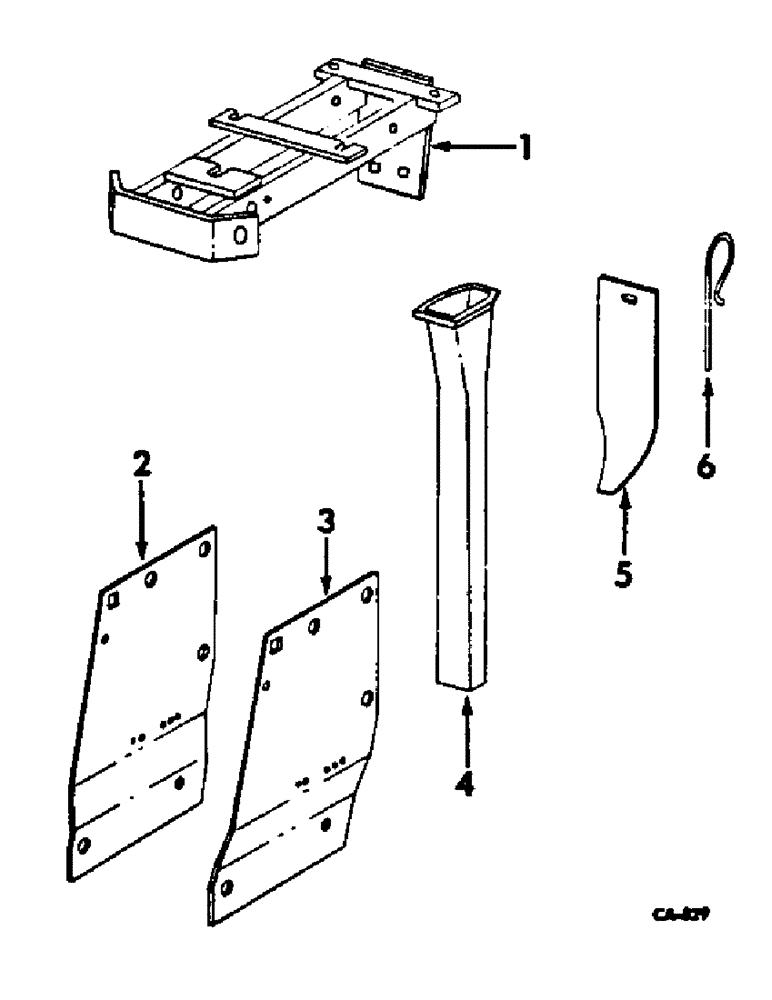

Запчасти Case IH 296 (AA-22) - HEAVY DUTY STUBBLE MULCH, DRILL UNIT, ONE PER ROW, 1969 TO 1970

1

541870R1

FRAME

ASSY, unit

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

8шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

472238R4

SHEET, rail side LH

2шт.

3

472239R4

SHEET, rail side RH

2шт.

4

541876R1

TUBE

drill seed

2шт.

5

490029R1

COVER, valve frt

2шт.

6

471207R1

PIN

quick attachable

2шт.
