Запчасти Case IH 296 (AA-21) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW

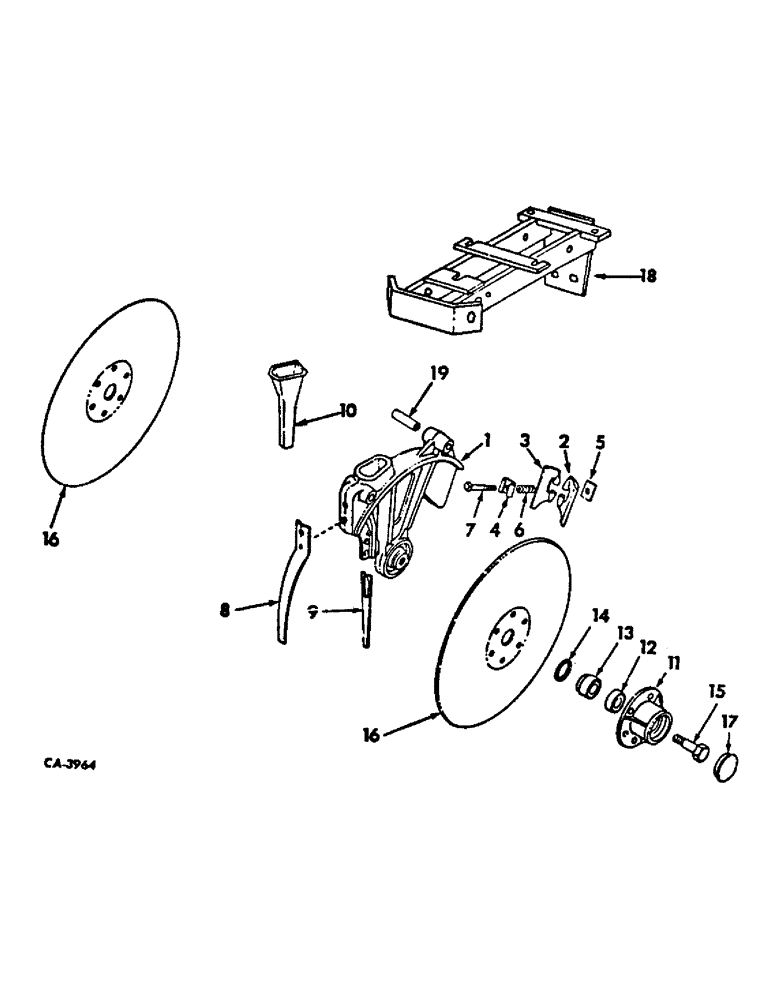

Схема запчастей Case IH 296 - (AA-21) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW
3
12
19
11
15
7
13
8
2
14
18
17
1
4
16
5
6
9
16
10

Артикул

Название

Примечание

Количество

1

484083R1

BOOT

double disk opener

2шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

N2567

LARGE PLATE

SCRAPER, inside LH

2шт.

3

N2568

SCRAPER

inside RH

2шт.

4

N62537

HINGE

inside scraper

2шт.

5

N62538

KNIFE ASSY

SPREADER, inside scraper

2шт.

6

N62536

VALVE SPRING

SPRING, inside scraper

2шт.

7

620723R1

BOLT

inside scraper to boot, 5/16-24 x 2-1/2 sq-hd mach

2шт.

274312

SHAFT

NUT, 5/16-24 CDP self-locking hex.

2шт.

8

522305R1

GUARD

weed

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

522306R1

DEFLECTOR

seed

2шт.

120373

NUT, 5/16-18 C-Z sq

2шт.

10

541875R1

TUBE

stubble mulch

2шт.

11

524053R1

HUB

HOUSING, brg

4шт.

12

ST262

BALL BEARING,17mm ID x 40mm OD x 12mm W

BEARING, disk inner ball

4шт.

13

ST620

BALL BEARING,17 mm ID x 40 mm OD x 18.2549 mm

BEARING, disk outer ball

4шт.

14

524061R1

SPACER

brg

4шт.

15

524039R1

BOLT,Hex, 5/8" - 11 x 2", LH Thd

spindle LH thread

2шт.

15

524040R1

BOLT,5/8" - 11 x 2", RH Thd

spindle RH thread disk brg/bolt

2шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

2шт.

16

523951R1

DISC

BLADE, disk, 13-7/8 in.

4шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

24шт.

17

522021R1

CAP

brg

4шт.

18

541870R1

FRAME

ASSY, unit

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

546983R1

BUSHING

stub mulcher brkt

4шт.

18829R1

BOLT

5/8 x 4-1/2 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

Выбрано товаров: 35
