Запчасти Case IH 296 (AA-20) - COTTON PLANTING EQUIPMENT, ONE PER ROW

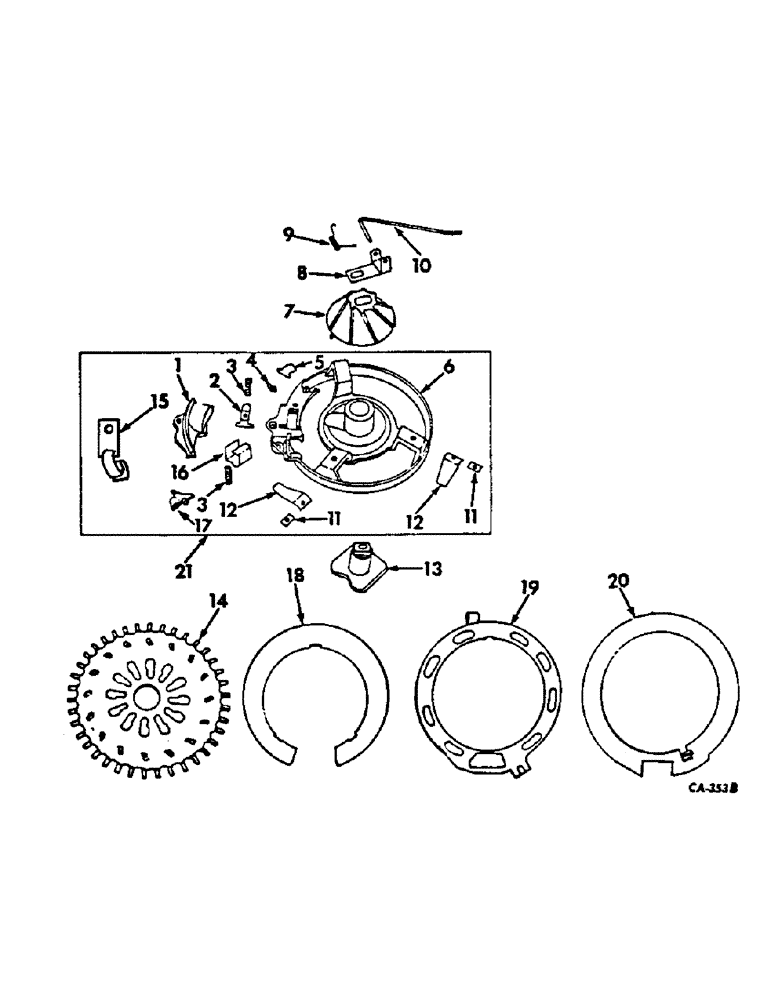

Схема запчастей Case IH 296 - (AA-20) - COTTON PLANTING EQUIPMENT, ONE PER ROW
14
11
18
15
5
3
8
17
20
2
13
21
12
19
11
3
9
6
10
16
12
1
7
4

Артикул

Название

Примечание

Количество

1

486796R2

CAP

pawl cover

2шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 znd hex-hd cap

2шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

2

621721R5

KNOCKER

2шт.

3

PO51

SPRING

cutoff and knocker

4шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

5

13607AB

HINGE

GATE, hinged

2шт.

6

BOTTOM, hopper, order 492755R11

1шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

8шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

8шт.

7

621716R1

PLATE

cotton agitator

2шт.

8

621725R93

BRACKET

ARM COMPLETE, agitator

2шт.

9

PO26760

SPRING

agitator

2шт.

10

622259R1

ARM

spring agitator

2шт.

11

445135

NUT

10-24 machine spring nut

4шт.

12

PO16047A

VALVE SPRING

SPRING, seed

4шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-rd hd mach

4шт.

13

492753R1

BLOCK DRIVER

STUD, agitator drive

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

551173R1

WASHER

13/32 x 1-1/8 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

621717R3

PLATE

cotton seed, 38 cells, requires 622481R1 filler ring

1шт.

14

621719R3

PLATE

cotton seed, 42 cells

1шт.

14

622424R1

PLATE

gin run cotton seed, 19 cells

1шт.

14

622480R1

PLATE

acid delinted cotton seed, requires 622481R1 filler ring

1шт.

15

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

2шт.

16

492519R1

SPRING

RETAINER, wear ring spring

6шт.

17

621723R1

KNIFE

CUTOFF

2шт.

18

488816R2

PLATE ASSY.

RING, wear

2шт.

19

492754R1

PLATE, hopper bottom

2шт.

20

622481R1

RING

filler

2шт.

21

492755R11

BOTTOM

W/FITTINGS

2шт.

Выбрано товаров: 36
