Запчасти Case IH 296 (AA-15[A]) - DISK FURROWING ATTACHMENT 12 IN., ONE PER ROW

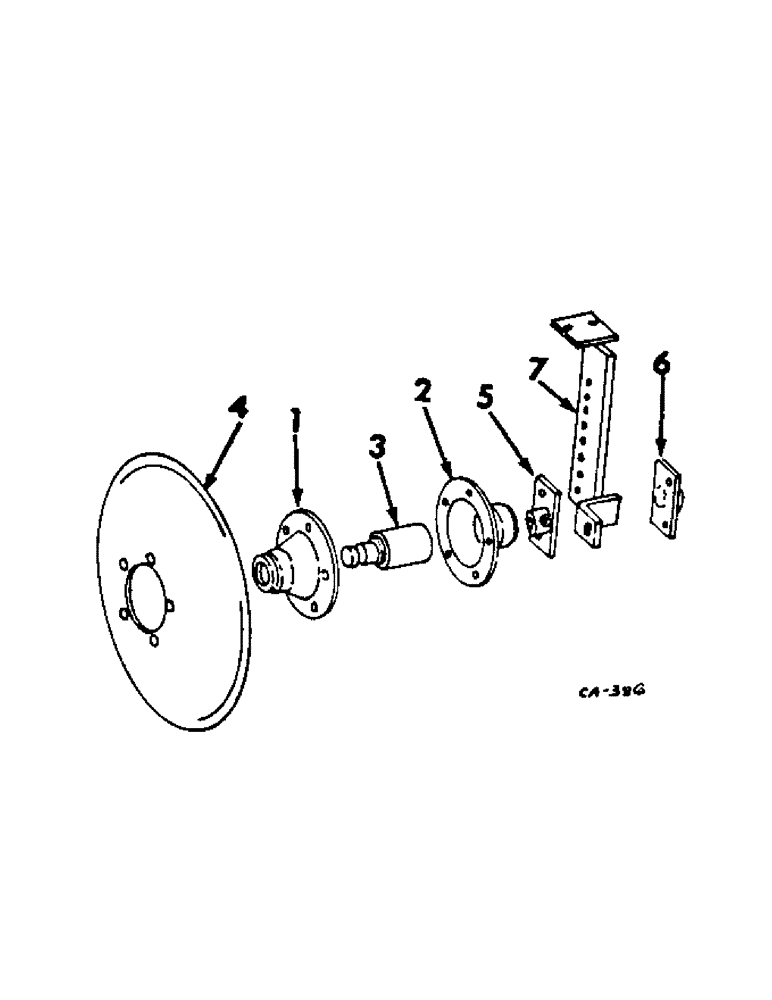

Схема запчастей Case IH 296 - (AA-15[A]) - DISK FURROWING ATTACHMENT 12 IN., ONE PER ROW
1
7
6
3
2
4
5

Артикул

Название

Примечание

Количество

1

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, brg inner

4шт.

2

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

brg outer

4шт.

3

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

4шт.

4

479848R1

DISC

DISK, 12 in. dia.

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

20шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

5

472248R91

BRACKET, furrow disk LH

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

472249R91

BRACKET, furrow disk RH

2шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

7

492715R1

BRACKET

ASSY, disk mtg

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

Выбрано товаров: 21
