Запчасти Case IH 296 (AA-11) - DEPTH BAND AND SCRAPER ATTACHMENT, ONE PER ROW

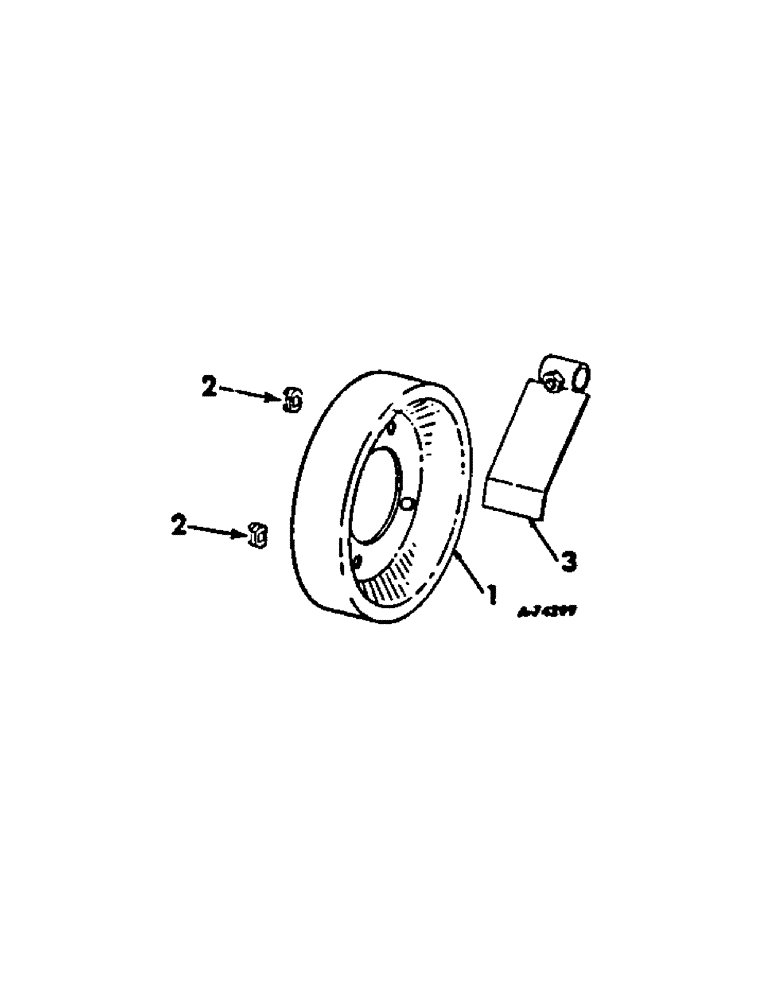

Схема запчастей Case IH 296 - (AA-11) - DEPTH BAND AND SCRAPER ATTACHMENT, ONE PER ROW
1
2
2
3

Артикул

Название

Примечание

Количество

1

493539R1

DRUM

BAND, depth 9-1/2 in. OD, for 1-1/4 in. depth

4шт.

1

493540R1

DRUM

BAND, depth 10-1/2 in. OD, for 3/4 in. depth

4шт.

1

542555R1

WHEEL

BAND, depth 11 in. OD, for 1 in. depth

4шт.

1

542670R1

DRUM, depth 9-7/8 in. OD, for 1 in. depth

4шт.

1

542671R1

DRUM, depth 8-3/8 in. OD, for 1-3/4 in. depth

4шт.

492752R1

BOLT,Carriage, 3/8" - 16 x 1 1/4"

spec crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

2

492751R1

WASHER

disk

8шт.

3

492761R1

BLADE

ASSY, depth band LH

2шт.

3

492762R1

BLADE

ASSY, depth band RH

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup pt-set

2шт.

Выбрано товаров: 13
