(AA-10[A]) - PRESSURE SPRING ATTACHMENT PLANTER UNIT, ONE PER ROW

Запчасти Case IH 296 (AA-10[A]) - PRESSURE SPRING ATTACHMENT PLANTER UNIT, ONE PER ROW

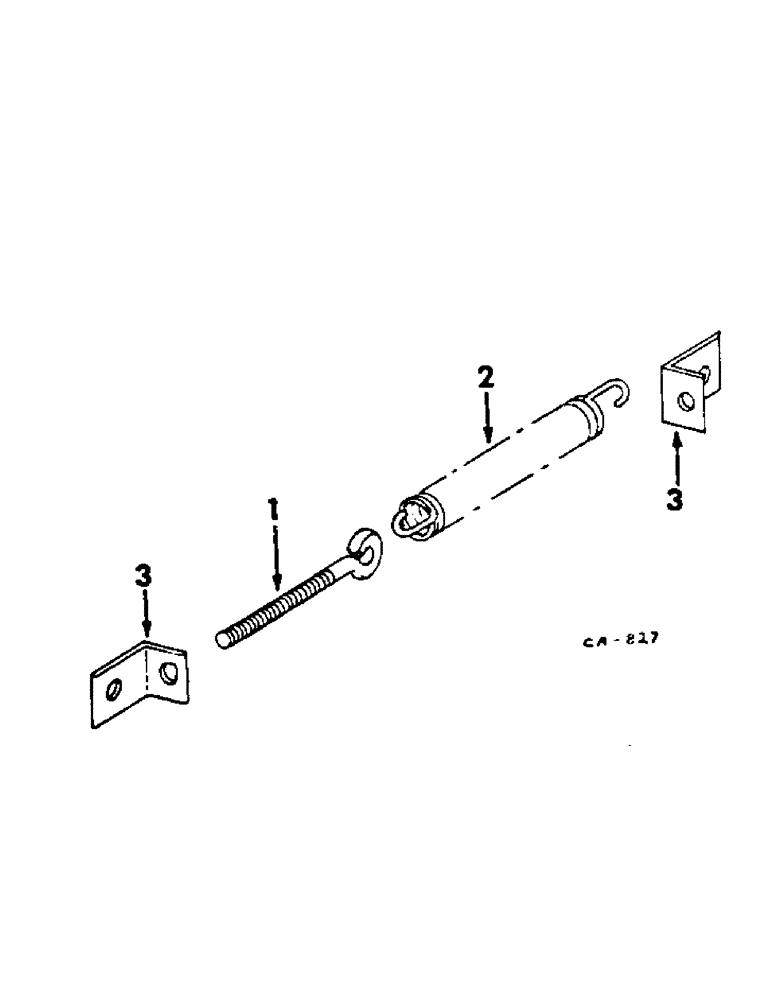

Схема запчастей Case IH 296 - (AA-10[A]) - PRESSURE SPRING ATTACHMENT PLANTER UNIT, ONE PER ROW
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

542858R1

U-BOLT

EYEBOLT

4шт.

2

510027R1

SPRING

trip lever

4шт.

3

542857R1

BRACKET

spring anchor

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

Выбрано товаров: 7
