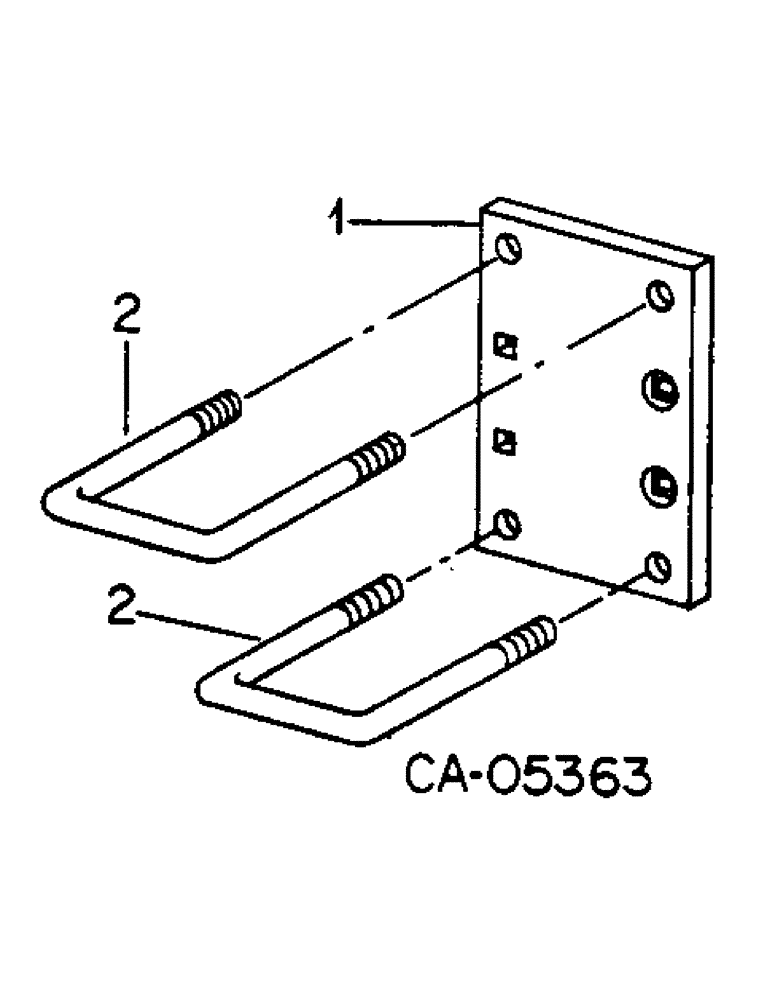

Запчасти Case IH 295 (Z-16) - HEAD BRACKET ADAPTER, FOR MOUNTING ON 4 X 4 IN. TOOL BAR

1

125568C1

BAR, adapter plate

1шт.

2

125665C1

U-BOLT, 5/8 in.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

19060R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2 x 1-1/2 plow type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
