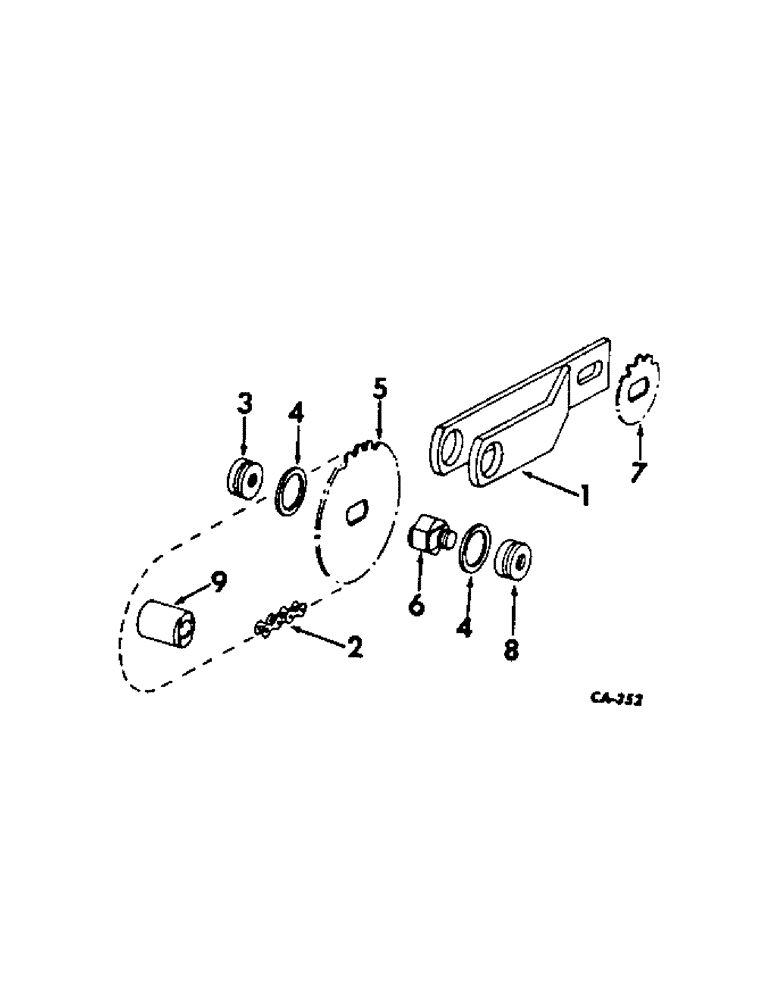

Запчасти Case IH 295 (Z-15) - SPEED CHANGE ATTACHMENT, QUANTITES SHOWN ARE PER UNIT

1

541528R1

SUPPORT

ASSY

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd hex-hd mach

1шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

2шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

2шт.

2

CHAIN, speed change, use 17 links from a 10 ft roll marked, 489466R91 and one connecting link, 489467R1

1шт.

3

493158R1

FITTING

BEARING, sprocket

1шт.

4

493159R1

SPACER

2шт.

5

492746R1

SPROCKET ASSY.

SPROCKET, 24 teeth

1шт.

6

493160R1

BOLT

spacer

1шт.

7

492747R1

SPROCKET ASSY.

SPROCKET, 12 teeth

1шт.

8

493161R2

FITTING

BEARING, outer

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 hex-hd cap

1шт.

9

541323R1

ADAPTER

axle sprocket

1шт.
